Application

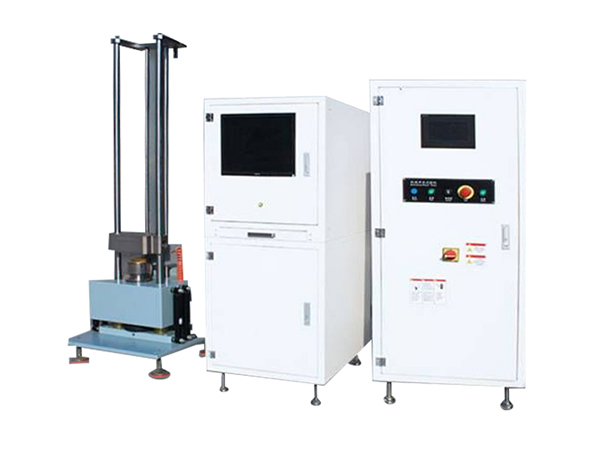

This mechanical impact testing machine is mainly suitable for the impact resistance test of electronic products, aerospace, shipbuilding, military industry, auto parts, transportation and other fields. It can carry out half sine wave shock test.
Working platform | 200 mm×200 mm |
Maximum load | 10 kg |
Peak acceleration | 20-1500 G |
Pulse duration | 0.5-7ms |
Dimension | (L×W×H) 600×550×1950mm |
Weight | 650 kg |
Electrical requirements | AC220V±10% 50Hz, 1KVA & 0.5—0.7MPa |
Measuring system | |
Input channels | 2 |
Sampling frequency | 192KHz |
Input form | Voltage, charge |
Coupling mode | AC, DC, ICP |
Pulse duration | 50-1ms |
Voltage range | -10V - +10V |
Impact waveform | half sine |
Operating system | Microsoft Windows2000/XP |
Communication interface | USB2.0 |
System acceleration sensor | |
Output method | Charge type |
Sensitivity | 3.93Pc/g |
Frequency range | 0.5-12kHz |
Acceleration range | ±2500G |
Working environment | -40~+160℃ |
