Application

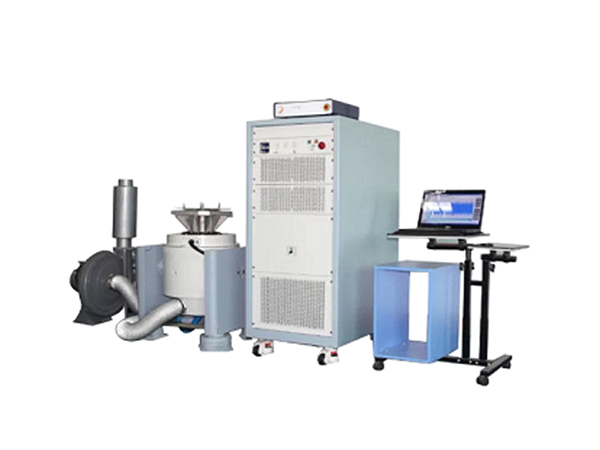

The electromagnetic vibration testing system simulates the vibration environment under the laboratory condition to test the reliability and safety for batteries during various vibration environments. The test results will be used to evaluate the batteries will not get explosion, fire, and break.
| Model | ||||
| Electromagnetic excitation generator | Maximum sinusoidal excitation force | 300Kg.f peak | ||
| Maximum random excitation force | 300Kg.f r.ms | |||
| Maximum impact excitation force | 600Kg.f peak | |||
| Frequency range | DC1～3000 Hz | |||
| Maximum displacement | 25 mm p-p | |||
| Maximum speed | 1.8m/s | |||
| Maximum acceleration | 100G(980 m/s2) | |||
| Maximum sinusoidal excitation force | 300Kg.f peak | |||
| F=M(kg) ×A(g) | 5G(49m/s2) | 10G(98m/s2) | 20G(196m/s2) | 30G(294m/s2) |
| 57kg | 27kg | 12kg | 7kg | |
| Maximum load (dynamic circle) | 120 kg | |||
| Vibration isolation frequency | 2.5 Hz | |||
| Moving coil diameter (work surface diameter) | Ф150 mm | |||
| Vertical expansion countertop | 400×400 mm | |||
| Extended countertop equivalent quality | 15 kg | |||
| Dynamic mass | 3kg | |||
| Extended table top load | 90Kg | |||
| Countertop screw | 13×M8 | |||
| Magnetic leakage | ＜10gauss | |||
| Equipment size | 750mm×560mm×670mm | |||
| Equipment weight | About 460kg | |||
| SA-3K Digital switching power amplifier | Output power | 4kVA | ||
| Output voltage | 100V | |||
| Output current | 30A | |||
| Signal to noise ratio | ≥65dB | |||
| Harmonic distortion (resistive load) | ＜1.0% | |||
| Output voltage measurement error | ≤5% | |||
| Output current crest factor | ≥3 | |||
| DC stability | The output zero drift is not greater than 50mv/8h | |||
| Frequency response 5-3500Hz | ±3dB | |||
| Amplifier size | 720mm×545mm×1270mm | |||
| Weight | 230kg | |||
| Servo protection system | Function: Temperature, air pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power, logic fault, input deficiency | |||
| Digital vibration controller VCSusb-2 | Hardware configuration | 2 channel input, 1 output channel | ||
| Control computer | Original Lenovo computer, LCD display (including keyboard / optical mouse) | |||
| Software | English operation for time domain and frequency domain analysis, signal source, sine sweep analysis, etc. It can automatically generate WORD test report, signal and data display, storage, set test parameters and analysis functions. | |||
| Operation system | Windows 2000/ XP | |||
| Accelerometer B&W | Frequency range: 1-12000Hz Sensitivity: 50mv/g Temperature range: -24 - 250 ° C | |||
| BL-300 Cooling fan (with speaker) | Fan power | 1.1 KW | ||
| Flow | 1404m3 /h | |||
| Wind pressure | 1000Pa | |||
| Power supply | 3 phase, 380V/50Hz, 15 KVA | |||
