This cut resistance tester is used for evaluating the cut resistance of safety glove protection areas and shoe upper materials. The test machine is not suitable for gloves made of hard materials.
Working Principle

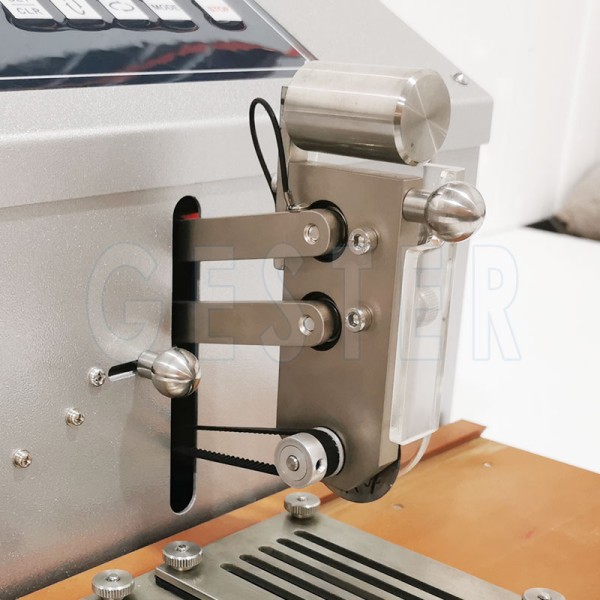

GT-KC29 circular blade cut resistance tester for safety gloves and shoe uppers operates by moving a spinning circular cutter in a reciprocating motion across a sample under a specified constant load. The material test equipment stops immediately once the material is penetrated. The result of cut resistance is determined by comparing the sample before and after testing.

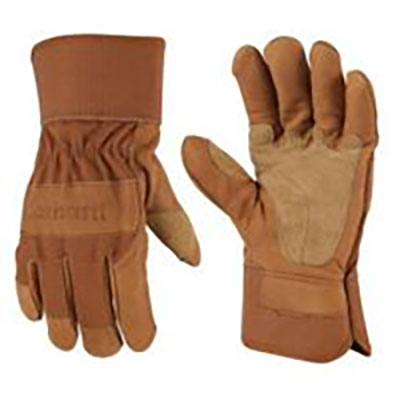

Safety gloves

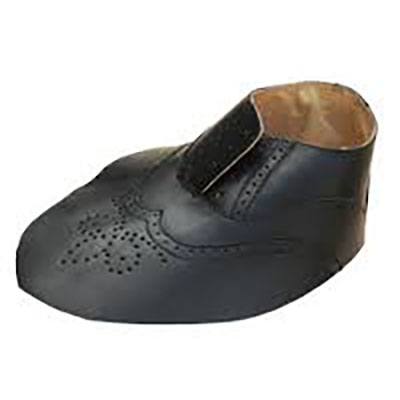

Shoe uppers
| Model | GT-KC29 |
| Circular Blade | Diameter 45±0.5mm |
| Thickness 0.3mm | |
| Cutting angle 30o ~35o | |
| Stroke | 50 mm |
| Load | 5±0.05 N |
| Max. Cutting Speed | 10 cm/s linear speed |

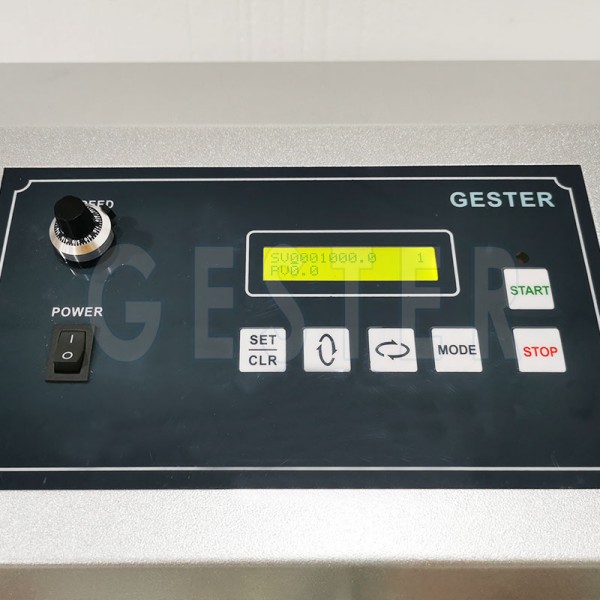

| Counter | LCD display, 0-99,999,999 |

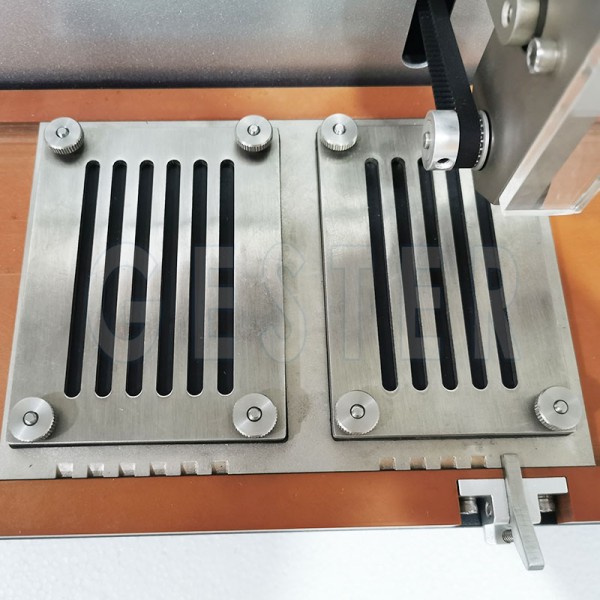

| Specimen Holder | 2 sets |
| Power Supply | 1∮AC 220V 50/60HZ |
| Dimension (W×D×H) | 68×26×65cm |
| Weight | Approx. 25kg |
EN 388 section 6.2
ISO 20344 -2021 section 5.23
GB/T 20991 section 6.14
AS/NZS 2210.2 section 6.14
AQ 6102 section 4.3.2
| Standard Accessories | 2sets | Specimen holder |
| 1pc | Circular blade | |
| 1roll | Aluminium foil | |
| 1pc | Filter paper | |
| 1pc | Power cable | |
| Optional accessories | 1meter | Canvas |
