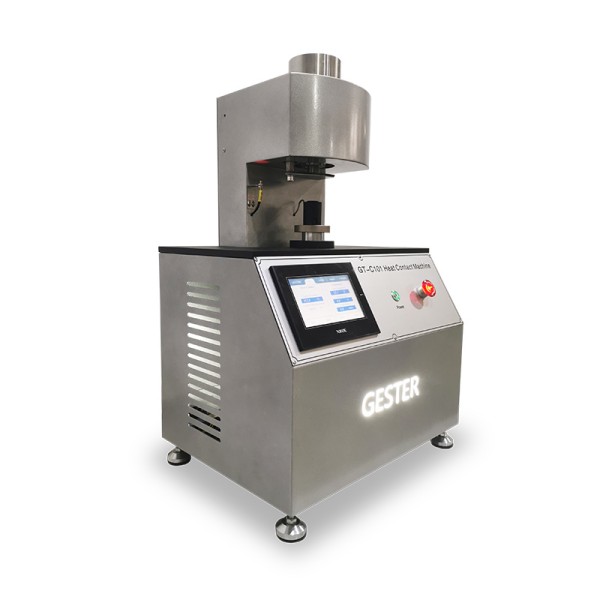

Contact Heat Test Machine GT-C101
This test instrument evaluates the contact heat resistance of protective equipment, specifically for welder's gloves used for hand and wrist protection in welding or related high-temperature processes.
Features

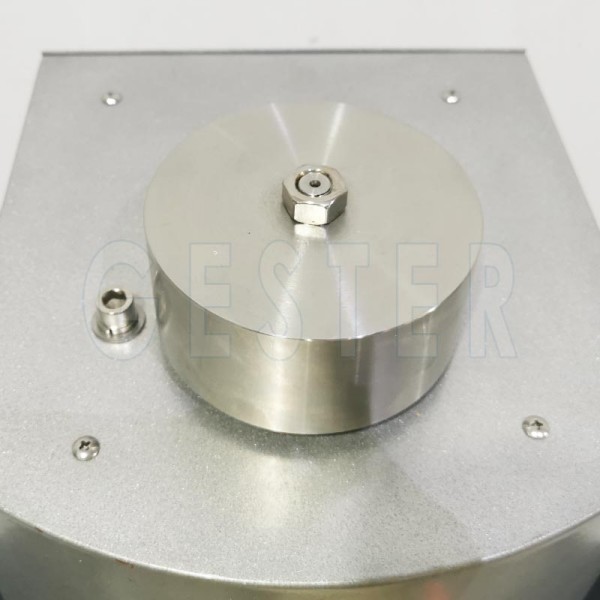

- The contact heat tester can withstand heating body temperatures up to 500°C, with precise temperature control.

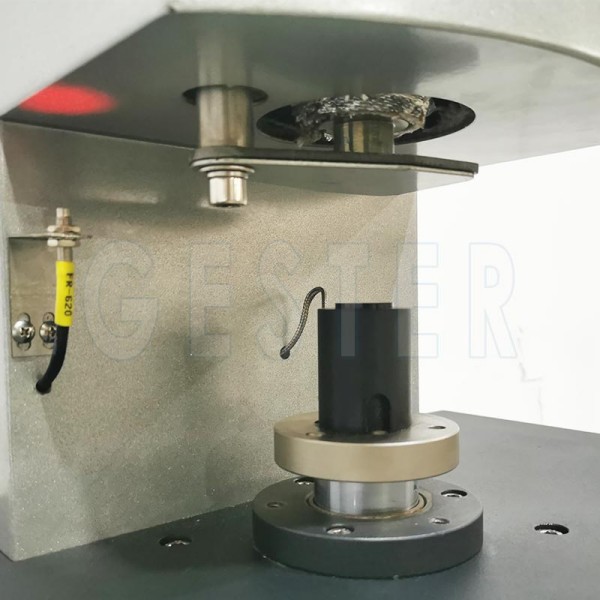

- The calorimeter in the material test machine ensures all measurements strictly meet the accuracy requirements of international testing standards.

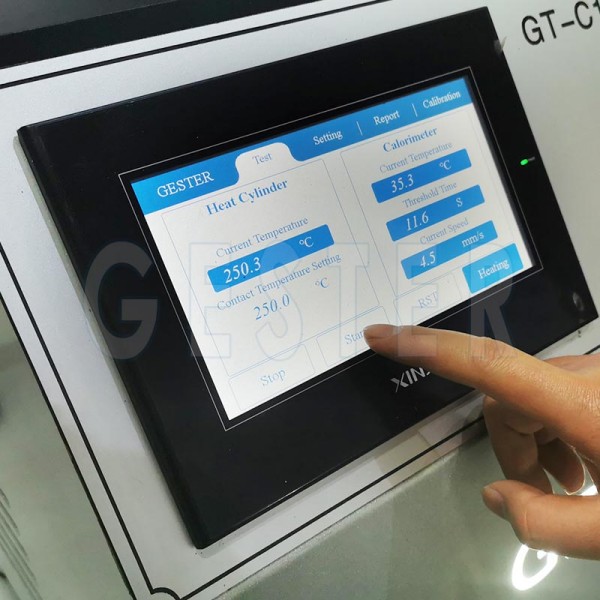

- Digital display provides real-time monitoring of the heater temperature, calorimeter temperature, and critical time.
- The contacting speed is adjustable.
Key Specifications
| Heater Contact Surface Diameter | (25.2±0.05) mm |
| Calorimeter Test Surface Diameter | (25±0.05) mm |
| Testing Contact Force | (49±0.5) N |
| Timer | 0-99.99sec; Accuracy: ±0.01 sec. |
| Contact Speed | (5.0±0.2) mm/s |
| Sample Diameter | 80mm |
| Power Supply | 1∮ AC 220V 50/60Hz |
| Weight | 40kg |
| Dimensions | 400×400×500mm |
| Standards | EN407, EN702, ISO12127-1 |
Accessories
| Standard Accessories | 1pc | Power cable |
