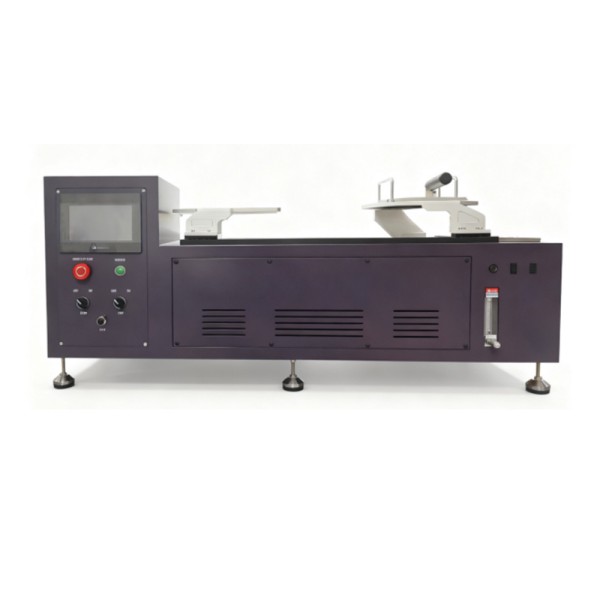

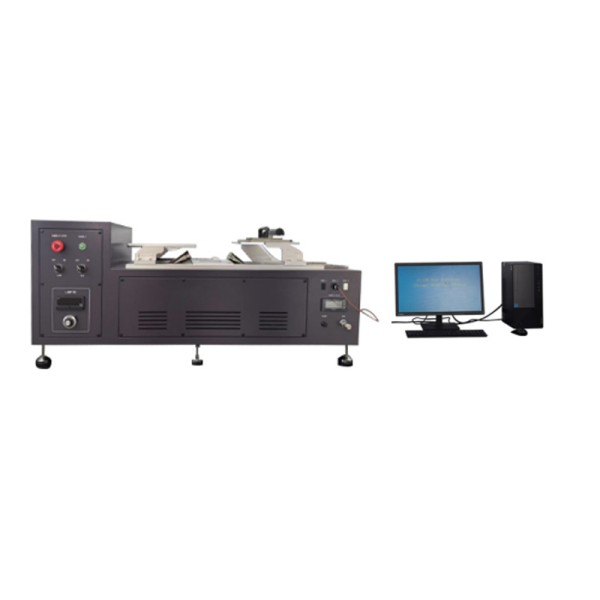

This thermal protective performance tester is designed to test the thermal protective and insulation performance of flame-retardant protective clothing, fire-fighting suits, fire boots, gloves, and helmet exteriors when exposed to radiant and convective heat sources. The material testing machine supports calculations for TPP (Thermal Protective Performance) values, TPE (Thermal Protective Evaluation) tests, and the FFF (Fabric Flammability Factor) algorithm.
Working Principle
Under a specified heat flux, the thermal protective performance tester derives the second-degree burn time from the intersection of the response curve (calorimetric sensor temperature rise curve) and Stoll curve (human tissue tolerance curve). Higher product of heat flux level and second-degree burn time indicates superior thermal protection of the fabric.
Standards
GB/T 38302-2019, ISO 17492-2019, ASTMF 2703, ASTMF 2700, NFPA 1971, XF 10, XF 634, GB 8965.1, NFPA 2112
| Model | GT-RC02B |
| Heat Flux Measurement Range | 0–167 kW/m² |
| Heat Flux Measurement Accuracy | ±2 kW/m² |
| Specimen Irradiated Size | ≥200×200mm, for testing flame-retardant protective clothing, fire-fighting suits and protective gloves |
| Convection Heat Source | 2 Merkel lamps (Heat flux: up to 60 kW/m²; Radiant heat flux: up to 40 kW/m²) |
| Rotor Propane Gas Flowmeter | Provides precise, stable propane flow for the burner |
| Radiant Heat Source | 9pcs of 500W infrared quartz lamps (proportional power control for 0–30 kW/m²radiant heat flux) |
| ASTM F2703 Copper Calorimeter | Accuracy ±3% F.S.; Weight 1000±10 g |
| Copper Calorimeter Copper Plate | Imported oxygen-free superconducting copper |
| Data Acquisition System Sampling Rate | ≥ 40 samples/second |
| Environment | 15–35℃ |
| Fume Hood | Recommended internal dimensions ≥150×75×90cm, including door height |
| Gas Source | Propane (Purity ≥95%, equipped with pressure reducing valve - cylinder & outlet pressure controlled) |
| Compressed Air | Prepared by user |
| Cooling Water Source | Tap water (inlet & outlet) or optional chiller |
| Power supply | Single phase AC220V 50Hz |
| Dimensions (L×W×H) | 130×65×53cm |
| Weight | Around 60kg |
| Standard accessories | 1pc | Computer |
| 1pc | DAQ Standard Test Software | |
| 1pc | ASTM F2703 dedicated copper calorimeter (for testing) | |
| 1pc | ASTM F2703 dedicated copper calorimeter (for calibration) | |
| 1pc | Power cable | |
| Optional accessory | Optional | Chiller unit |
