Sweating Guarded Hot Plate GT-C98

    Chair Seat Pad and Back Testing Machine
    Chair Seat Pad and Back Testing Machine

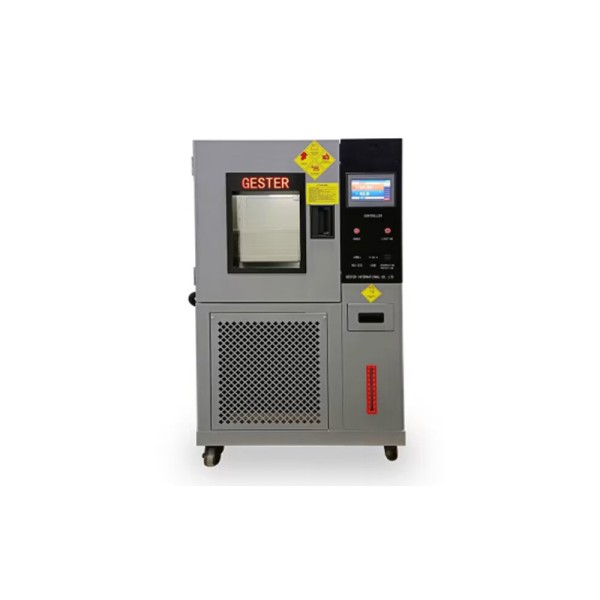

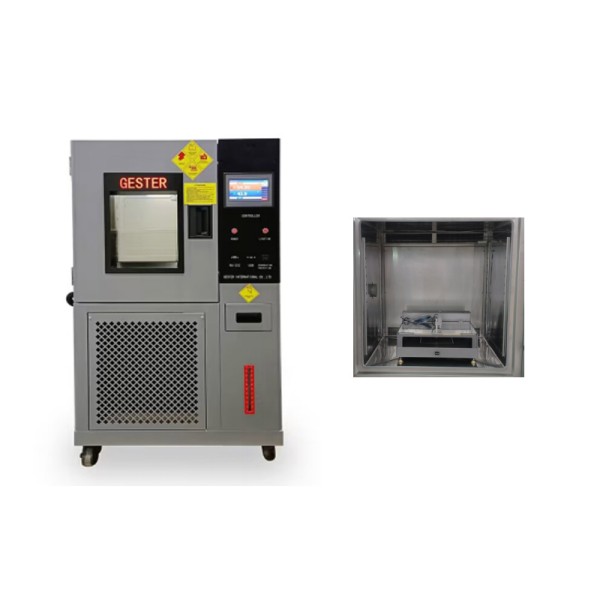

The GT-C98 sweating guarded hot plate is used to determine the thermal and evaporative resistance of clothing materials. The textile testing instrument heats a fixed aluminum or copper, maintaining a constant temperature and heating power. The test is conducted by covering the aluminum or copper with test fabric, to determine the sample's thermal or moisture resistance.

Features
  • The fabric testing machine features a heating plate that precisely simulates the human skin structure.
  • The dual-unit design completely separates the temperature test chamber from the machine itself.
  • Integrated control system and automatic supply system.
  • Automatic water supply and drainage system, with water adding system.
  • Input the sample thickness, and the platform moves to the corresponding position.
  • The sweating guarded hot plate tester automatically adjusts PID control parameters according to the specimen type to reach a steady test state rapidly.
  • Adjustable speed (0–1.2 m/s) enables the fabric tester meets the standard for wet thermal resistance and thermal performance tests.
  • The width of the heating protection ring ensures that heat is transmitted only to the specimen.
  • LED soft lighting system.
  • Supports USB and WiFi connectivity.
  • Comes with test software and supports various testing standards

Standards
GB/T 11048, ISO 11092, ASTM F 1868, ASTM D 1518-85, JIS L1096-2010, ASTM D6701

Key Specifications
Thermal Resistance (RCT) Range 0.002-2.0m².K/W
Thermal Resistance (RCT) Resolution 0.0001m².K/W
Dampness (Ret) Range 0 ~ 1000m².Pa/W
Dampness (Ret) Resolution 0.001m²·Pa/W
Test Plate Temperature Range 30℃-40 ℃ adjustable
Temperature Control Accuracy ± 0.03 ℃
Temperature Resolution ± 0.01 ℃
Air Velocity 0 to 1.2m/s adjustable
Accuracy of Air Velocity ±1%
Platform Lifting Range 0-50mm
Specimen Thickness 0-50mm
Area of Test Plate 254×254mm
Size of Specimen 512×512mm
Width of Heating Protection Ring 127mm
Internal Dimensions of Chamber 700×600×600mm(L×D×H)
External Dimensions of Chamber 1300×1160×1570mm(L×D×H)
Chamber Weight 250kg
Power Supply 1∮AC220V±10%, 50/60Hz, 6kW
Accessories
Standard Accessories 1pc English operation software
1pc Air speed sensor
1pc Temperature and humidity chamber
1pc Power cable
