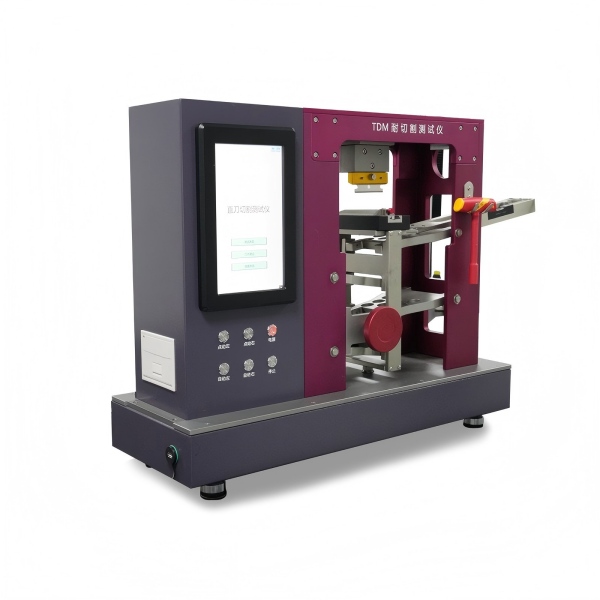

TDM Cut Resistance Tester GT-KC28
The cutting resistance tester performs TDM grading tests to determine the cutting resistance (cutting force N) of gloves, protective clothing fabrics, composite materials, and rubber.
Features
- The TDM cut resistance tester features a user-friendly touch screen interface that provides comprehensive display of test parameters.
- The program includes an automatic blade correction coefficient calculation formula, cutting data analysis, and curve fitting functions, reducing the operator's time on complex calculations. It also supports data storage, raw data queries, and data export.
- The software can be upgraded to match the latest standards, currently featuring updates to calculate and output the confidence interval (CI) and determination coefficient (R2) for curve regression, in accordance with the standard 13997-2023.
- A built-in thermal printer allows the TDM cut resistance tester to output test data in real-time, while a USB port enables the export of professional data reports.
- The control transmission system utilizes servo motors, precision ball screws, and rotary encoders to ensure stable operation and stable test data.
- This TDM cut resistance test machine offers flexible configuration options, including blades imported from the United States or Japan to meet specific customer requirements.
Standards
ISO 13997, BS EN 1082-2:5.4, EN 388, GB 24541-2022:6.3,ASTM F2992/F2992M-15, ANSI/ISEA 105-2016:5.1.1
Key Specifications
| Model | GT-KC28 |
| Vertical Cutting Force Load | 0~100N |
| Horizontal Cutting Force | 25N |
| Total Vertical Stroke of Sample Rack | 35mm |
| Effective Vertical Stroke of Sample Rack | 10mm |
| Cutting Speed | 150mm/min@±10% |
| Cutting Stroke | 200mm |
| Test Loading Stand Lever Ratio | 2:1 |
| Cutting Distance Reading Accuracy | 0.01mm, graduation value 0.001mm |
| Annular Combination Weight | 2kg-1mg (ring weight + sheet weight) 1 set |
| Power Supply | 1phase, AC 220V 50Hz 500W |
| Dimension (W×D×H) | 45×45×44cm |
| Weight | Approx. 20kg |
Accessories
| Standard Accessories | 1Box | Cutting blade (100pcs/box) |
| 1pc | Neoprene correction patch |
| 1roll | Double-sided tape/roll |
| 1set | M1 ring weight |
| 1pc | Power cable |
| Optional accessories | Option | Self-adhesive copper tape/roll |
