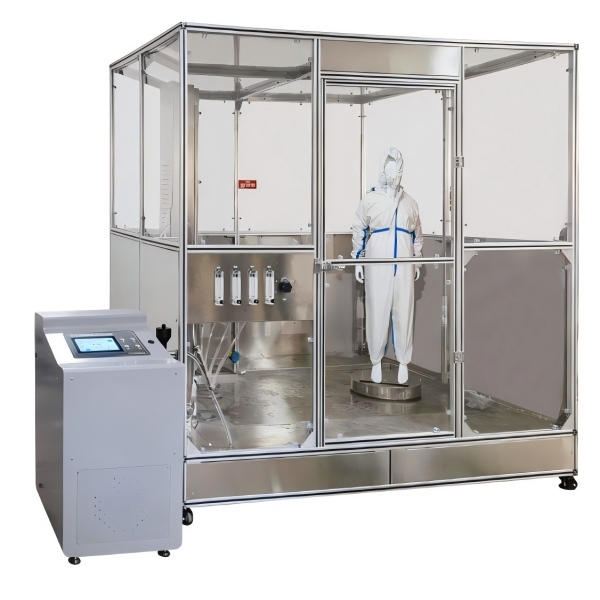

Splash Liquid Penetration Tester GT-RC06
This splash liquid penetration tester is used to determine the penetration resistance of protective clothing by spraying liquid.
Features
- The splash liquid penetration test instrument utilizes a special dummy model to to simulate realistic wear.
- A turntable is constructed from waterproof materials and rotates at a constant speed.
- Water supply system features a pressure gauge and flow regulation for stable test conditions
- The penetration resistance testing machine allows for pre-set spray times and automated timing.
- The comprehensive protection enclosure ensures maximum safety and hygiene for laboratory operators by preventing chemical splashing.
Standards
GB 24540-2009, GB 24539-2021, ISO17491-4
Key Specifications
| Model | GT-RC06 |
| Rotation Speed of Turntable | 1r/s |
| Nozzle Mounting Spacing on Spray Bar | 450mm |
| Spray Angle of Nozzle | 75° |
| Injection Pressure of Nozzle | 300kPa |
| Water Flow Velocity of Nozzle | (0.47±0.05)L/min, (1.14±0.1)L/min |
| Time Setting Range | 0～99.99s, resolution: 0.01s |
