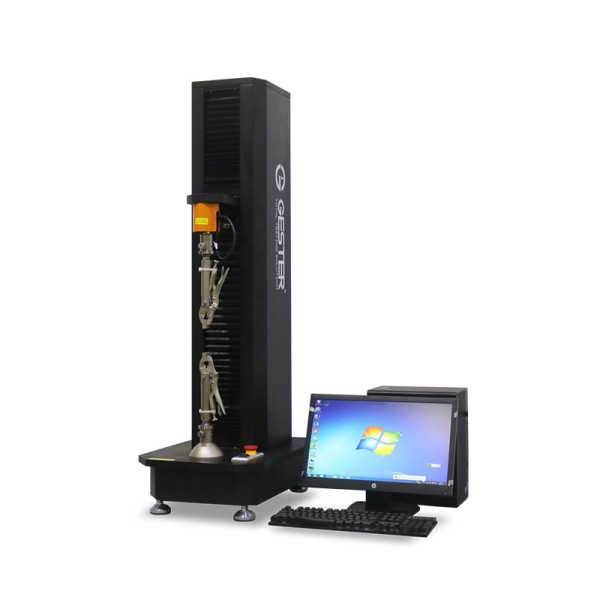

Single-Column Universal Testing Machine GT-UA03

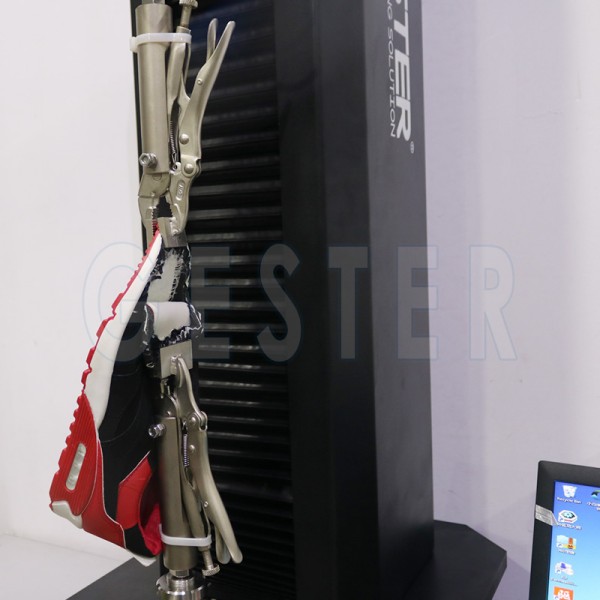

GT-UA03 single-column universal testing machine is a materials testing system engineered for high-precision mechanical property analysis across a vast range of industries. This universal tensile tester excels in evaluating the tension, compression, bending, shear, tear, and peel strength of diverse materials and products, including textile, rubber, plastic, aluminum tube, composite materials, yarns, fibers, wires & cables, paper, adhesive tape, footwear and packaging materials.
This universal testing machine supports sophisticated multi-closed loop testing, enabling laboratories to perform constant stress, constant strain, and slack tests with absolute consistency. By integrating special devices, this material testing machine can be further extended to conduct reversion and cupping tests
Main Parts
-

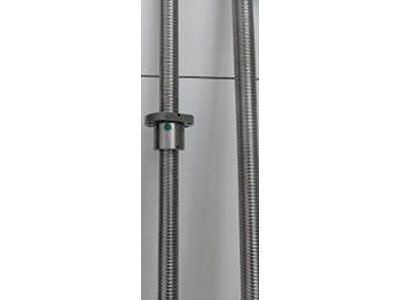

A pair of high precision ball screw
-

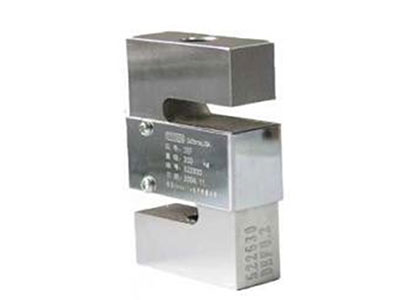

Load cell
-

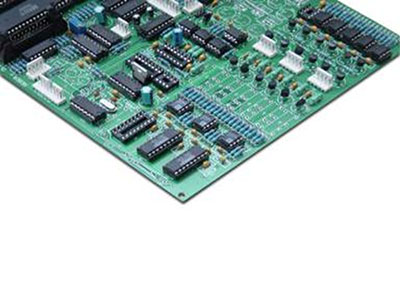

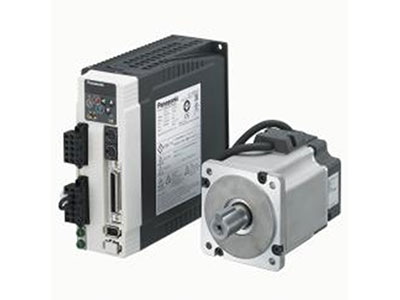

A set of servo motor and servo system respectively
-
Windows-based professional testing software
Feature s
- Drive system: utilizing servo motor, servo drives, worm gear reducer and ball screw
- Control system: adopting Pulse Command control method, the universal testing machine ensures high precision and easy operation
- Wide speed control range: 0.001-1000 mm/min
- The intermediate plate adjustment features both fast coarse positioning and high-precision slow-speed fine-tuning
- The material test machine automatically returns to the starting position and saves test data
- Data transmission mode: RS232 interface
- Display mode: computer screen display
- This universal testing instrument can realize constant speed, precise positioning, constant power, constant stroke control modes, meeting the ordinary test requirements
- Extensive testing space: 1000mm of plate travel (excluding fixture), customizable to meet specific height requirements
- LINE DRIVE encoder with exceptional anti-interference ability and 0.001mm resolution
- Safety protection: this material test machine is configured with overload emergency stop, upper/lower stroke limit switches, automatic leakage protection, and a break-point auto-stop function

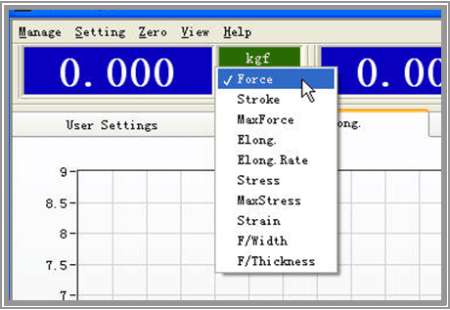

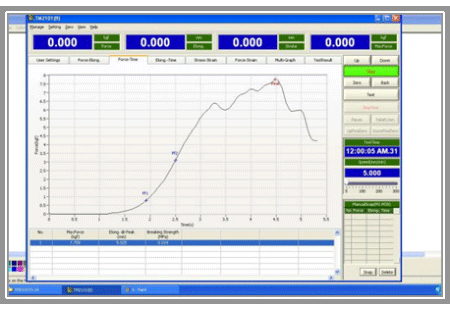

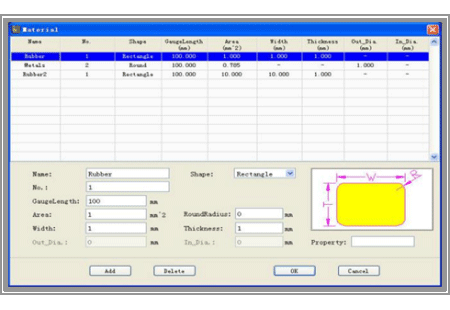

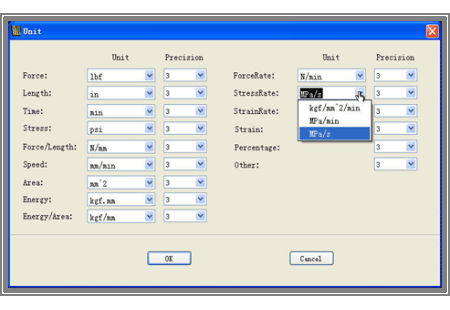

Parts of Operation Software
Key Specifications
| Model | GT-UA03 |
| Load Capacity | 50N, 100N, 200N, 500N, 1kN, 2kN, 2.5kN, 5kN |
| Display | Computer display |
| Force Resolution | 1/100,000 |
| Force Accuracy | ≤+/-0.5% |
| Stroke Range | 1000mm |
| Stroke Resolution | 0.001 mm |
| Test Speed | 0.001-1000mm/min, can set on display, with up & down fast adjustment button of grips |
| Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa |
| Stop Mode | Overload stop, emergency stop button. specimen damage automatic stop |
| Machine Drive | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power | 120W |
| Power Supply | AC 220V 50-60HZ 10A |
| Dimensions | Approx. 50x40x145cm |
| Weight | 60kg |
Accessories
| Standards accessories | 1set | Manual grips |
| 1pc | Load cell |
| 1pc | Operation software (English version) |
| 1pc | Cable for PC |
| Option accessories | Optional | Desktop computer |
| Optional | Other grips |
