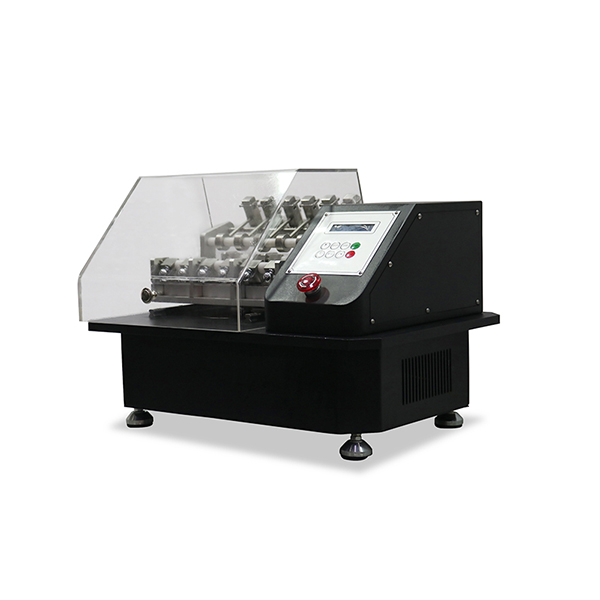

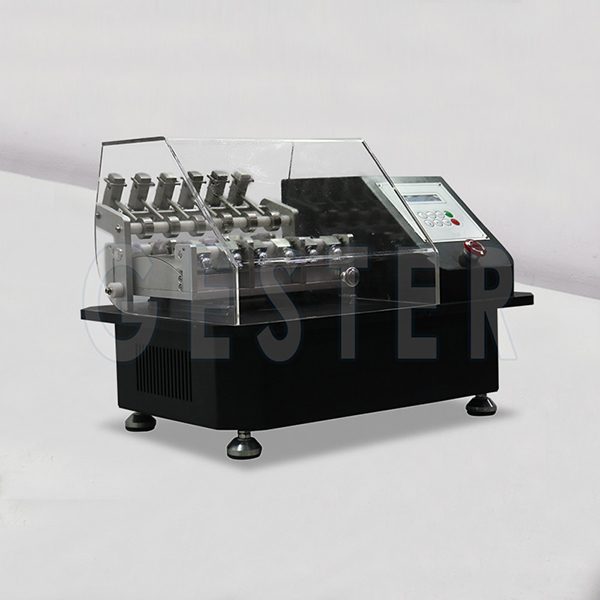

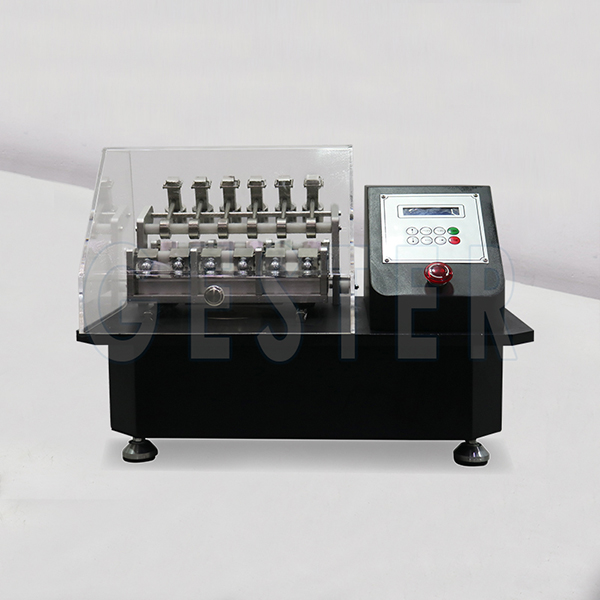

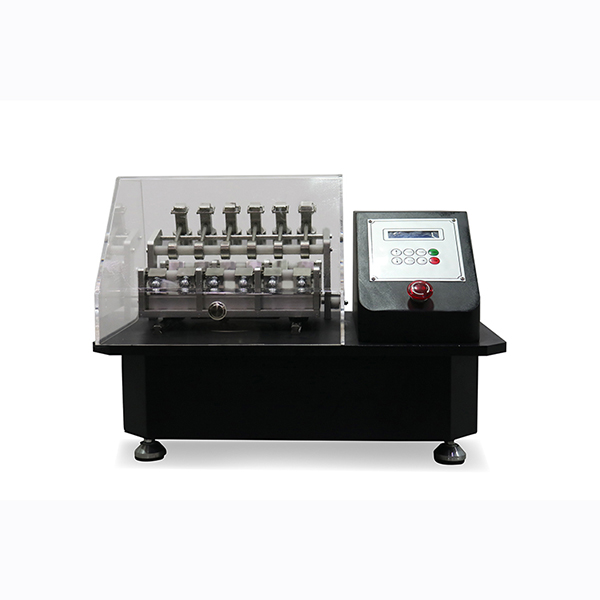

The Gakushin rubbing and color fastness tester is mainly used to evaluate materials’ color fastness to rubbing. It is a 6 station benchtop rubbing tester which includes clamps for sample attachment to moving platen as well as clams for weighted rubbing arm for attachment of rubbing material, and its cycle counter will stop the machine automatically at the end of test. In addition, test specimens are visually checked.
Technical Data of Gakushin Rubbing and Color Fastness Tester
Model | |
Working positions | 6 |

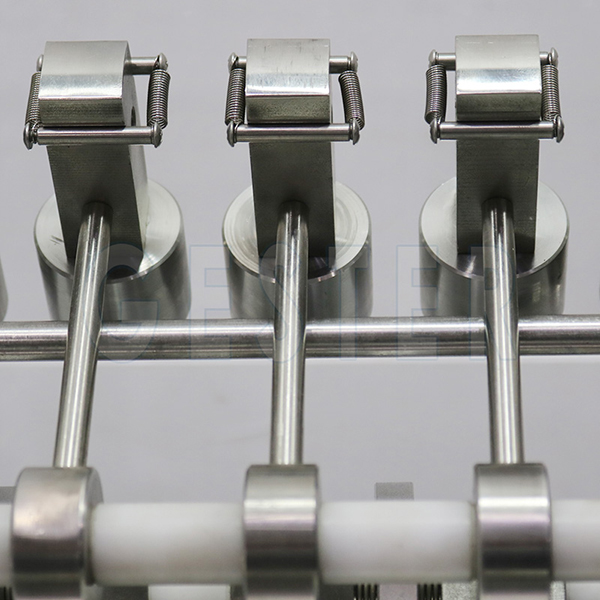

Rubbing finger surface radius | R45mm |
Rubbing finger contact area | 100mm2 |
Rubbing finger track | 100±1mm |
Rubbing finger mass | 200g |
Auxiliary weight mass | 300g |
Specimen stage surface radius | R200mm |
Rubbing speed | 30±2 rpm |
Specimen dimensions | 220 x 30mm |
Power Supply | Customizable |
Dimensions | 540 x 490 x 300mm( L x W x H ) |
Weight | 80kg |
Standards | JIS L0823 Section 3.2, JIS L0849 Type2, JIS L1006, JIS L1084, JIS L 0862 Type2, JIS 10801, TSL5100G Section 4.8.1A, QB/T1646 |
Related Names
Gakushin Type Rubbing Tester | Gakushin Tester | Dyeing Rubbing Tester
