Light Fastness Testing Machine (Air Cooling Tester)

Application
This machine applies to light color fastness, anti-climate color fastness, light & perspiration color fastness and light aging tests of textile, paint, dye, coating, rubber, plastic, wood floor, paper and other materials, it has anti-climate functions of exposing to the rain, revolution and mist spraying.

Feature
1. Rated 3300W long-arc xenon lamp technology adopted to real simulate sunlight spectrum.
2. High transmittance of filter combinations and use 95% of the transmittance filters and filter cartridges. With low power consumption, but achieve the same irradiation light requirements. To make the machine is more energy saving and environment friendly.
3. Digital setting of light intensity, real-time monitoring, automatic adjustment, to meet the different standards for testing the stability of light source.
4. Test and radio transmission are powered by using light conversion technology, no additional power supply is required.
5. The sample is tested with black plate thermometer (BPT), black plate standard thermometer (BST), irradiance detector at the same position (in equidistance) to really indicate measuring state of the sample, the tested data is transmitted synchronously by using technology of radio frequency.
6. With industrial temperature control (refrigeration) system for smoothly and fast adjusting temperature in test chamber. With several modes of operation (spray, alternating light and dark, revolution), can simulate the real climate state.
7. Individual timing of each sample clamp may enable different sample test in a same tester and facilitate test monitor and reduce operation cost.

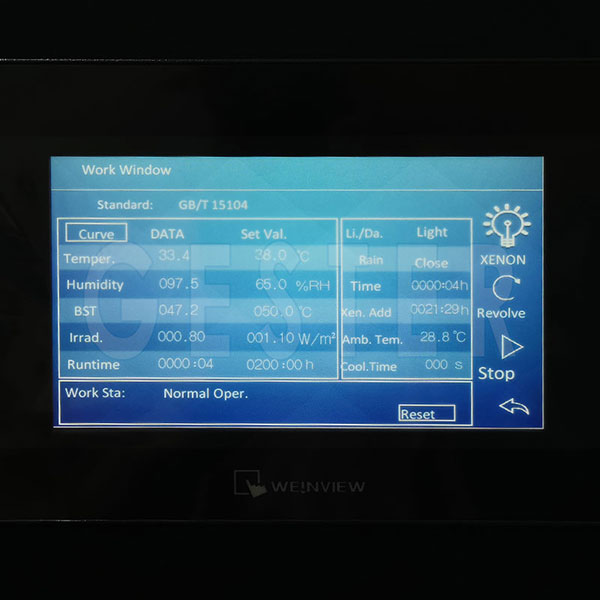

8. 10.4 inch color touching screen display control and various test monitoring modules (animation, digit, chart) make operation easy, visual and clear.
9. One test can run for 1000 hour continuously with quality guarantee.

Parts Figure

Model GT-D02A-1 light fastness tester - room temperature(air-cooled)
Chamber temperature 25-55℃; Resolution: 0.1℃
Chamber humidity Light cycle: 10-70%RH; resolution: 0.1RH% Dark cycle: 30-95%RH; resolution: 0.1RH%
BST 40-85℃; accuracy: ±1℃; resolution: 0.1℃
BPT (Option) 40-80℃, accuracy:±2℃; resolution: 0.1℃
Time control range ≤10000h
Irradiance control range 0.80-1.20W/m²@420nm (Option: 340nm, 420nm, 300-400nm or 280-800nm) Accuracy: ±0.02W/m²@420nm.
Digital setting, closed-loop automatic compensation
Xenon arc lamp rated power 2500W
Sample holder rotation speed 2-7 rpm
Sample holders capacity ISO: 145×45mm 12pcs Or AATCC: 145×70mm 6pcs
Timing of each sample holder, respectively ≤10000h
Light period ≤1000h
Spray period ≤1000h
Power AC220V ±10% 50Hz 6.5KW .
Rated power 3.3KW
Dimension 920×650×1680mm
Weight 180kg
Standards GB/T 8427, GB/T 8430, GB/T 14576, GB/T 15102, GB/T 15104, ISO 105-B02/B04, AATCC TM 16, ISO 12040, ASTM D5010, ASTM D4303, ISO 11341
