Application

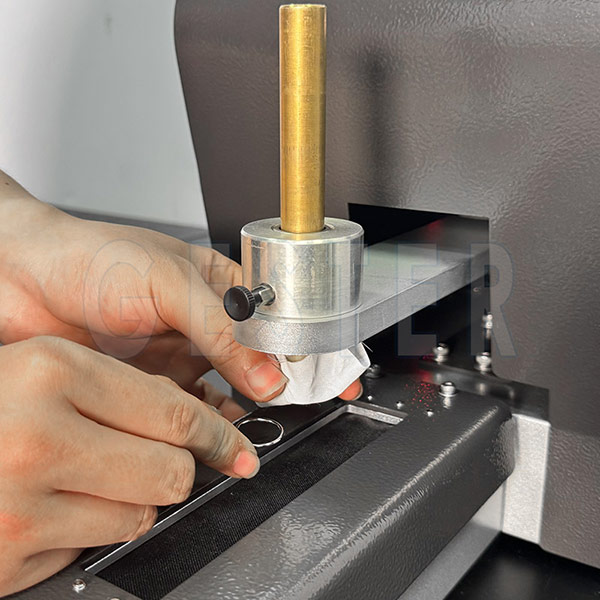

To determine the colour fastness of textiles to dry or wet rubbing. A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results.
Feature
1. Metal box, high-temperature baking coating, and easy maintenance.
2. Electric motor, fitted with a pre-determined electronic counter for strokes up to 9999, experiment complete successfully, automatic stop.
Key Specification
| Model | |
| Control mode | Electronic control |
| Rubbing head diameter | 16mm |
| Vertical pressure | 9N±0.2N |
| Rubbing head track | 104±3mm |
| Test speed | 60±2 rpm |
| Power supply | AC 220V 50/60HZ |
| Dimension ( L x W x H ) | 62 x 26 x 28cm |
| Weight | 14kg |
| Standards | BS 1006- D02, ISO 105- X12/D02, AATCC 8/165, ASTM D6279, JIS L 0849 Type1,JIS L 0862 Type1 |
Related Names
Digital Crockmeter | AATCC Electronic Crockmeter
