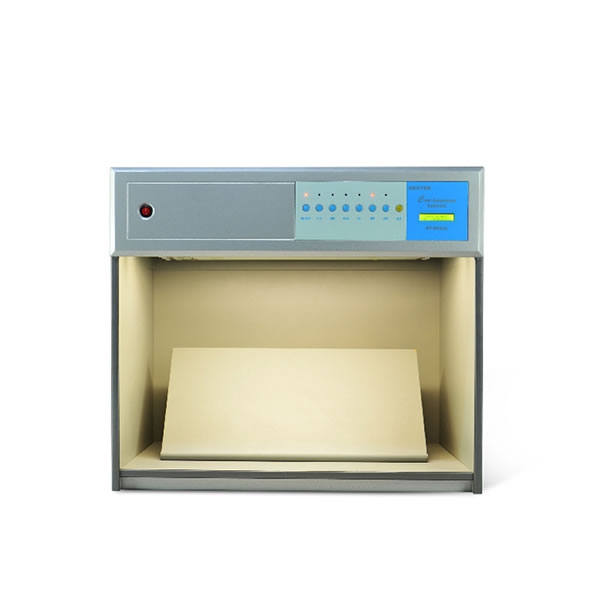

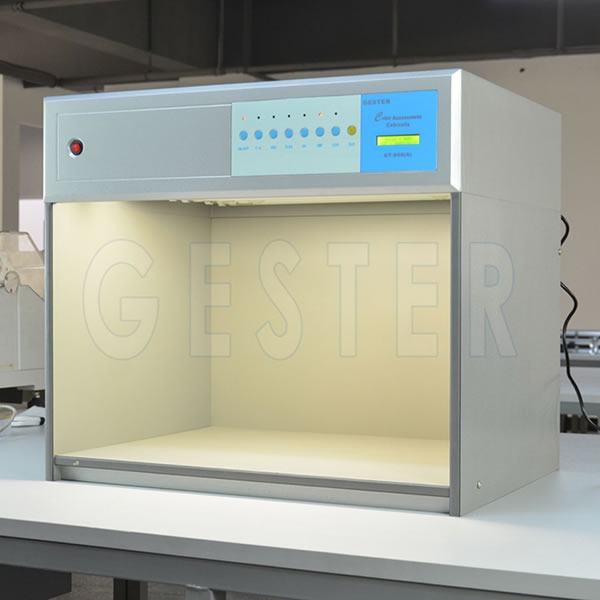

Color Matching Cabinets

Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can use of a Light Booth / Viewing Booth / Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere. The Color Viewing Cabinet / Color View Light Booth / Color assessment cabinet / Color Light Box can be applied to the industries that need to perform testing color difference as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

1. Color assessment cabinet render color more accurately. With 6 different light sources(D65, TL84, CWF, F, UV, U30), which can detect the metamerism.
2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
3. Easy to operate by using individual switches for each light source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternating among light sources.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.

Optional Model

Models Configured light sources Weight Dimensions( L x W x H)
GT-D08(4) D65. TL84. F/A. UV 24kg 710 x 405 x 570mm
GT-D08(5) D65. TL84. CWF. F/A. UV 28kg 710 x 405 x 570mm
GT-D08(6) D65. TL84. CWF. F/A. UV. U30 34kg 710 x 530 x 570mm
GT-D08(7) D65. TL84. CWF. F/A. UV. U30.INCA 34kg 710 x 530 x 570mm
GT-D08(12) D65. TL84. CWF. F/A. UV. U30 65kg 1310 x 600 x 800mm
