Universal Testing Machines with Custom Testing Solutions

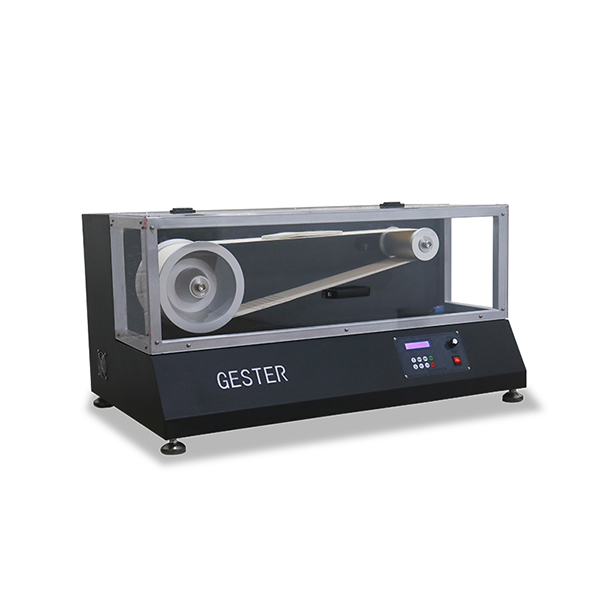

Specially offered for testing the flex resistance of outsole, the shoe sole flexing tester is capable of simulating the walking state of human-beings. The belt type flex testing machine will stop automatically at preset test parameters. Our shoe flex testing device supports synchronous testing of multiple samples, which effectively helps the users to improve the working efficiency.
Technical Parameters of the Shoe Sole Flexing Tester
| Belt size | Length: 1930±50mm, width: 140±5mm |
| Rotating speed of bull wheel | 247±20 cycles/min |
| Rotating speed of belt | 90±8 cycles/min |
| Quantity of test piece | Max. 6 soles for synchronous testing |
| Counter | LCD, 0-999,999 |
| Size | 123×72×72cm |
| Weight | 170kg |
| Standard | SATRA TM133 |
