Universal Testing Machines with Custom Testing Solutions
Application

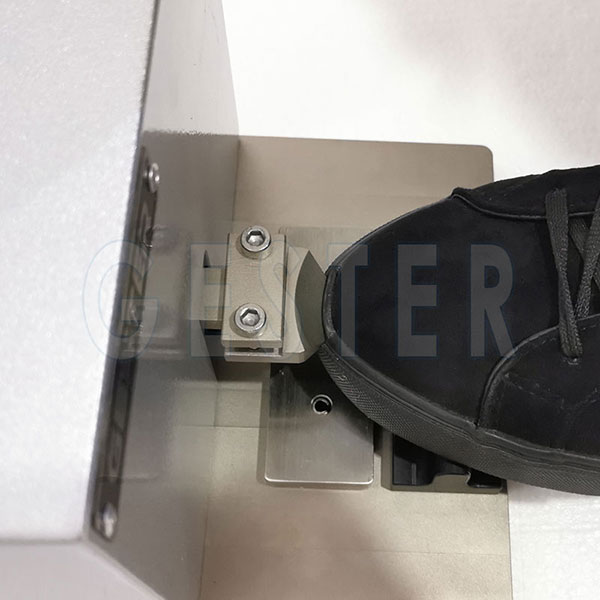

To determine the strength of the bond between the sole and upper at the toe and heel area of the lasted margin of completed footwear. The method is mainly applicable to stuck-on or moulded-on constructions with an extended sole edge.
Key Specification
| Model | |
| Load range | 100kg |
| Peeling cutter arc length | 22 ± 1 mm |
| The centre distance of the fulcrum and the arc | 45mm |
| Display method | LCD |
| Power supply | 1∮AC 220V 50/60HZ |
| Dimensions(W x D x H) | 30 x 22 x20 cm |
| Weight | 15 kg |
| Standards | SATRA TM404 |
