GT-KC07 Insole / Insock Absorption And Desorption

Application
The insole/insock absorption and desorption tester is used to determine the amount of water absorption and desorption of the shoe insole and insock. Putting the shoe on a wet floor, the machine will bend the shoe with specified pressure repeatedly and the results are measured and recorded.

Specification

Model GT-KC07A GT-KC07B

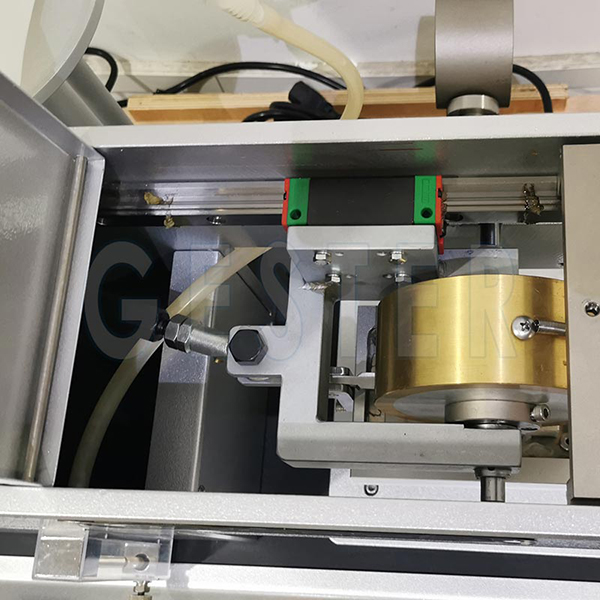

Brass Roller Diameter (120 + 1) mm , Width(50 + 1) mm
Speed 20 ± 1 cycles / min
Stroke 50 ± 2 mm 100 ± 2 mm
Press Load 80 ± 5N
Water Flow Rate 7.5 ± 2.5 ml/min
Sample Size 110±11 ×40±1mm 100±1 ×40±1mm
Timer 0~999h59m59s
Power Supply Customizable
Dimensions 65 x 45 x 75 cm
Weight 104kg
Standards EN ISO 20344 section 7.2 GB/T20991 section 7.2
EN ISO20347 section 5.7.3 AS/NZS 2210.2 section 7.2
EN 12746
ISO 22649
SATRA TM220
BS3144 section 22
ISO5404

Standards
EN ISO 20344 section 7.2 GB/T20991 section 7.2
EN ISO20347 section 5.7.3 AS/NZS 2210.2 section 7.2
ISO5404

Accessories

Standards Accessories 1pc Power line
Optional Accessories OptionalGT-C48 Pneumatic Sample Press
(Cutter: 110±11 x 40±1mm; 100±1 ×40±1mm)
OptionalElectronic balance (200g / 0.001g)>
