Universal Testing Machines with Custom Testing Solutions
Application

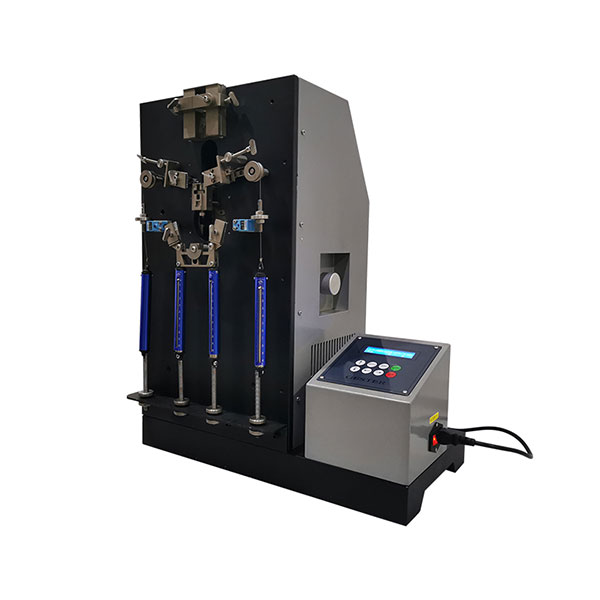

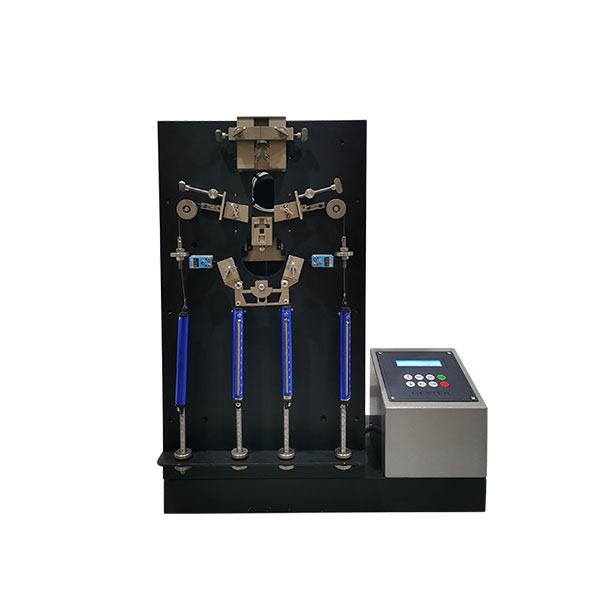

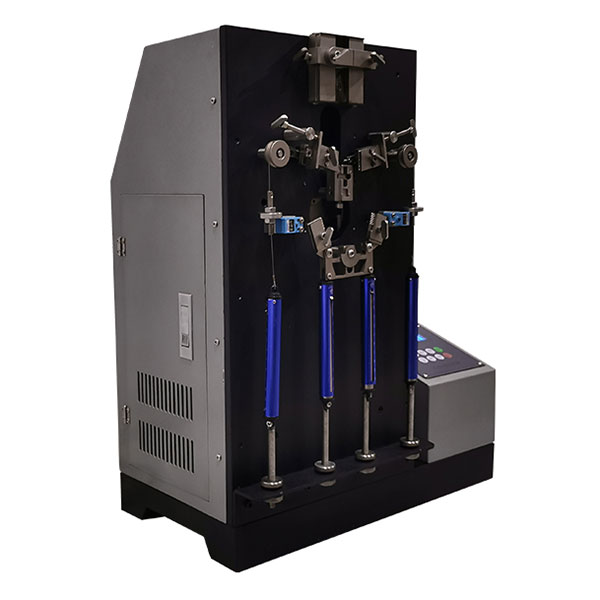

This machine was use to do a variety of zipper reciprocating tests, by tests in a continuous back and forth action, the ultimate aim is to test the zipper created a distance between joints, loose or connector failure, fluff, wear, etc.
Feature
1.Reasonable design, easy to operate

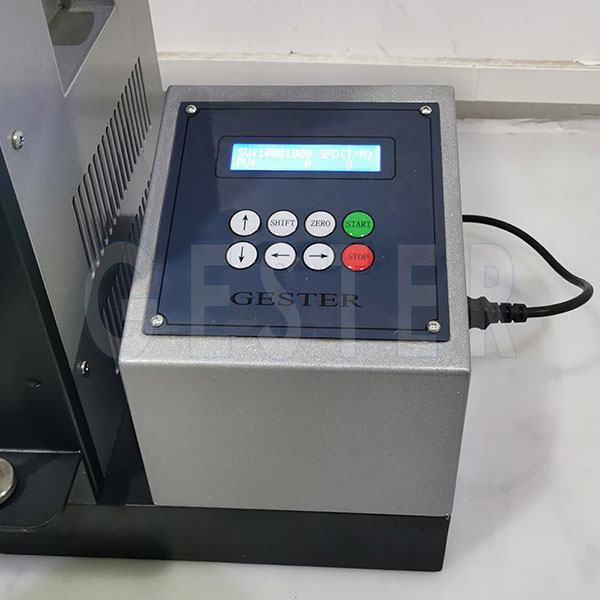

2.Equip with automatic counting device to complete test and automatically machine stop.
Key Specification
| Model | |
| Horizontal fixture width | 25mm |
| Test speed | 30cpm |
| Reciprocating stroke | 75mm |
| Angle | Open: 30degree. Close: 60degree |
| Counter | LCD, 0-999999 |
| Power Supply | AC 220V 50/60HZ |
| Dimensions | 480 x 370 x600mm |
| Weight | 61kg |
| Standards | CNS -1083 , BS 3084 , QB/T2171 |
