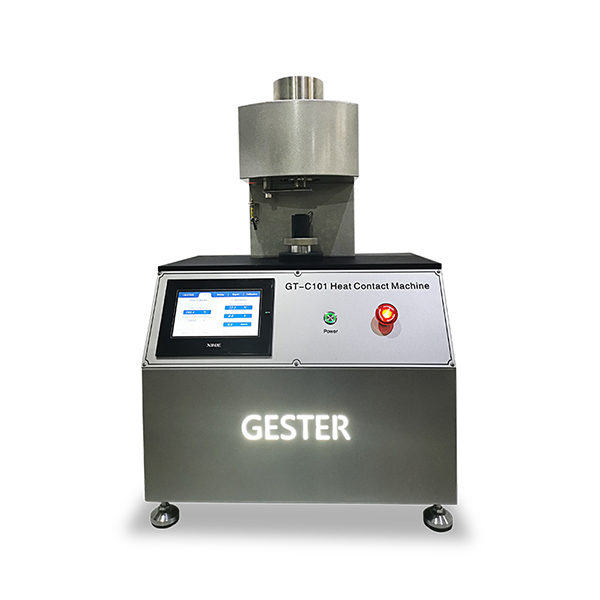

Contact Heat Resistance Tester for Protective Gloves GT-C101
Application
This test instrument is used to evaluate the contact heat resistance performance of welders’ gloves for hand and wrist protection during welding and related work processes.
Features

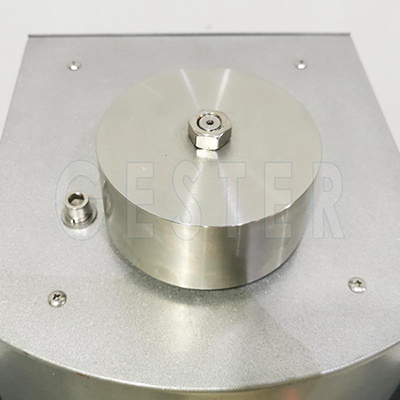

- The heating body can withstand temperatures of up to 500 °C, with adjustable and controllable temperature settings.
- A dedicated calorimeter is used to meet the required testing accuracy.

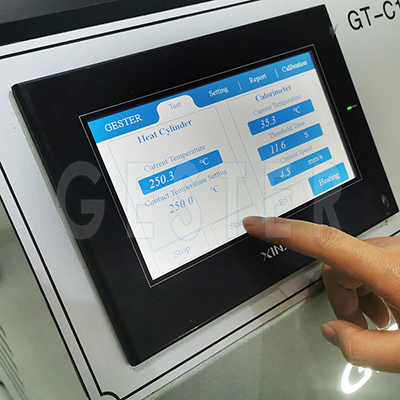

- The temperatures of the heater and calorimeter, as well as the critical contact time, are digitally displayed.
- The contact speed between the heating body and the specimen is adjustable.
Specification
| Heater Contact Surface Diameter | (25.2±0.05) mm |
| Calorimeter Test Surface Diameter | (25±0.05) mm |
| Testing Contact Force | (49±0.5) N |
| Timer | 0-99.99 sec.; Accuracy: ±0.01 sec. |
| Contact Speed | (5.0±0.2) mm/s |
| Sample Dimensions | Diameter: 80mm |
| Power Supply | Single-phase AC 220 V, 50/60 Hz |
| Weight | 40 kg |
| Dimensions (L × W × H) | 400 x 400 x 500 mm |
| Standards | EN 407, EN 702, ISO 12127-1 |
Accessories
| Standards accessory | 1 pc | Power cable |
