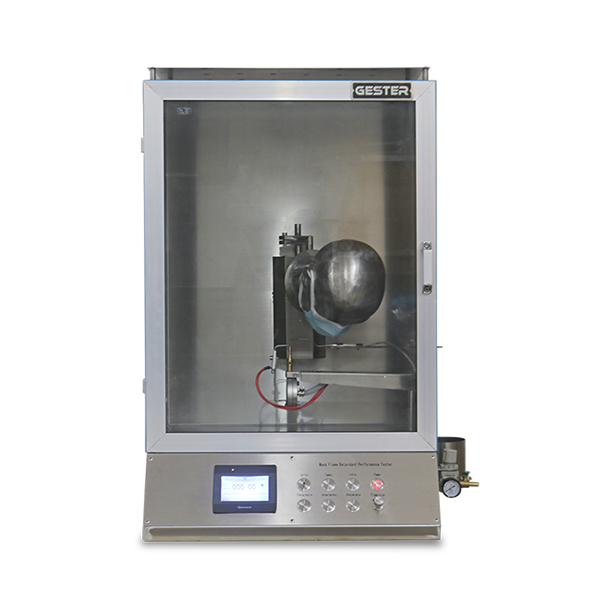

GT-RA06 Mask Flame Retardant Tester

Application
This machine is a special test instrument for flame retardant performance of medical masks, which is used to test the flammability performance of medical mask after contacting with flame at a certain linear speed.

Feature
  • The mask fixture is a metal human head mold, which can simulate the actual use situation of the mask.
  • The burner is equipped with a combustible gas interface, such as propane (liquefied gas).
  • Burner height is adjustable.
  • Burner features automatic timing and positioning function.
  • Burning time and flame retardant time are automatically recorded and displayed digitally.
  • It is equipped with flame temperature measuring probe and flame temperature display.

Standards
GB 19083, YY 0469, GB 2626, EN 149, IS 9473, EN 14325

Key Specification
Model GT-RA06
Linear speed of the tip of nose on head model (60 ± 5) mm/s
Flame height Initial height 40±4mm(adjustable)
Diameter of flame temperature measuring probe 1.5mm
The temperature of the flame (800 ± 50) ℃ at a height of (20 ± 2) mm from the top of the burner
Distance between top of the burner and lowest point of the mask (20 ± 2) mm
Adjustment range of burner height 30mm
Thickness of the metal mold 2 ~ 3mm, flame resistant.
Timer of burning time and smoldering time 0-99.99 seconds, accuracy: ± 0.1 seconds
Gas Propane gas
Weight 100kg
Power supply AC220V, 50Hz, 50W
