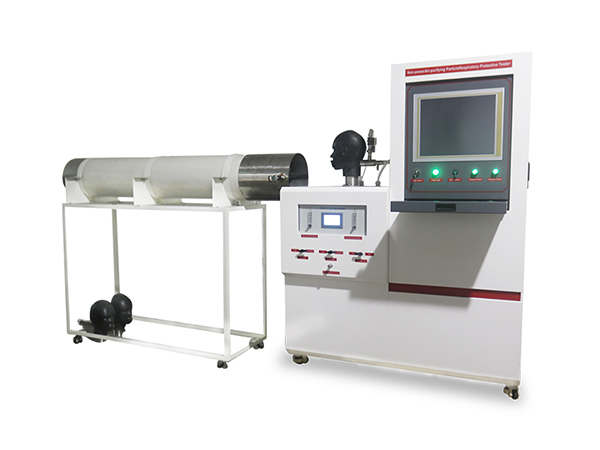

GT-RA05 Non-power Air-purifying Particle Respiratory Protective Tester

Application
This machine is used for determining the carbon dioxide (CO2) volume of respiratory protective mask.

Key Specification
Model GT-RA05
Frequency of breathing simulator 10~40times/min
Range of tidal volume 0.5~3.0L/min
Volume fraction of CO2 5.0±0.1%
Range of flow meter ≧40L/min
Range of analysis meter ≧12%, accuracy≧0.1%
Air speed of fan 0.5m/s
Frequency of breathing 20times/min
Tidal volume 1.5L
Power supply AC220V 50Hz
Standards EN 149, EN 13274-6, GB/T 2626, JIS/T 8151 Particulate respirators
Feature
  • Controlled by computer, it can automatically record, and calculate the changes of the carbon dioxide concentration during the entire test process. The operation is simple and easy to use.
  • There is no need to adjust the breathing frequency and breathing volume during the test. People can adjust the parameters on computer for getting this purpose. The adjustment is very convenient and accurate.
  • The one-way valve that controls the breathing channel is automatically controlled by the ventilator using a solenoid valve group. It is completely synchronized with the ventilator. The test results will be more accurate.
  • All data can be saved automatically. In addition, test report can be also made automatically. People can check the data and printed reports at any time by the computer.
