Application

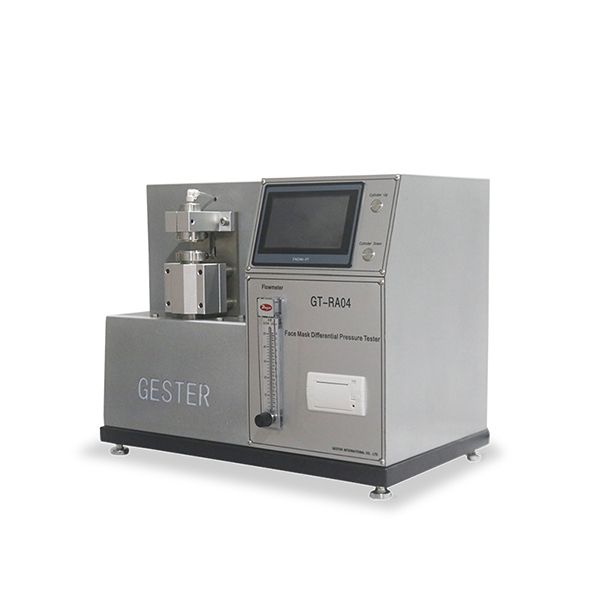

This differential pressure tester is used for measuring the differential pressure on both sides of surgical masks or other fabric materials during gas exchange to test the breathability.
Features
1.This tester adopts uses a gas source that can continuously pressurize the sample without being limited by the space of the test site.
2. With high precision differential pressure sensor, the pressure difference can be digitally displayed on both sides.
3. It is equipped with special sample grip to hold the sample
Model | |
Control mode | 7inch touch screen |
Air source | Suction type |
Air flow for testing | 8±0.2L / min |
Air flow range | 0~20L/min |
Sealing method | Face seal |
Air permeability diameter of sample | Ф25mm |
Range of differential pressure sensor | 0 ~ 1000Pa, accuracy: ±1% |
Weight | 40kg |
Power supply | 1Phase AC220V 50Hz |
Standards
YY 0469 Section 5.7, YY /T0969 Section 5.6
ASTM F2100 Standard Specification for Performance of Materials Used in Medical Face Masks
BS EN 14683 Medical face masks - Requirements and test methods, section 5.2.3, Annex C
