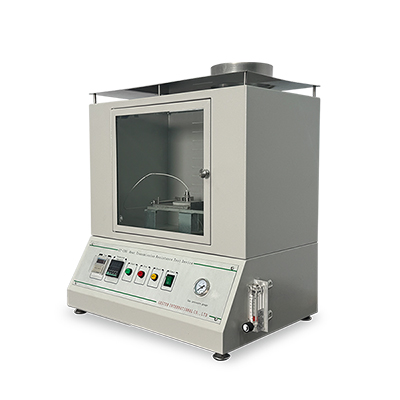

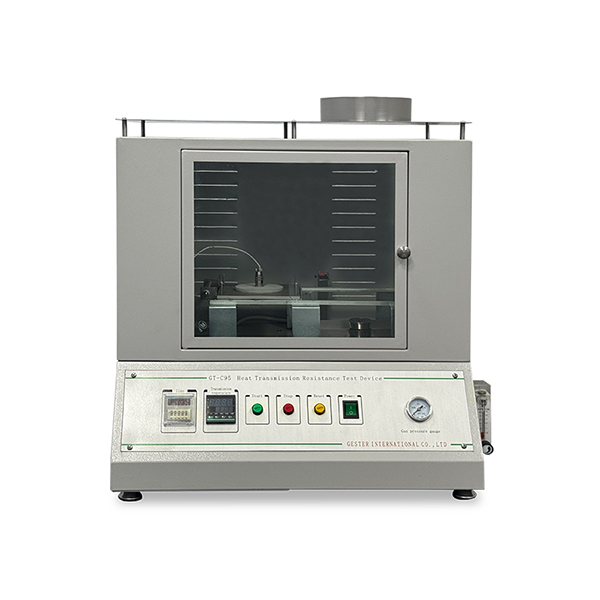

Thermal Conductivity Tester GT-C95
Application
This testing device is used to determine the heat transfer performance of textiles, firefighting equipment, and other related materials.
During the test, the sample is exposed to a specified heat flux generated by a flame heat source. A calorimeter positioned on the back surface of the sample measures the time required for the temperature to rise by a specified value (ΔT = 24 °C). This time is used as an index for evaluating the thermal conduction properties of the material.
Features

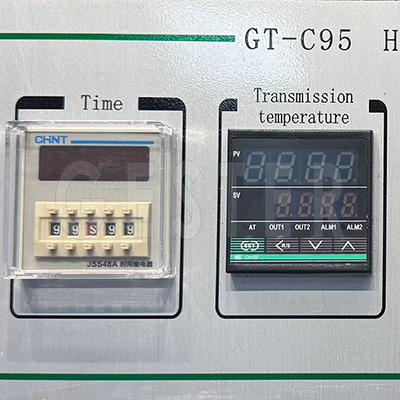

- Digital display of flame temperature, measured temperature, and test time
- The burner is designed for gas combustion at the flame nozzle and features inner-ring and outer-ring air holes
- The calorimeter is positioned within the upper sample holder and makes direct contact with the back surface of the sample for accurate temperature measurement
Specification
| Heat Source | Liquefied petroleum gas |
| Heat Flux Density | ≧40KW/m2 |
| Timing Range | 0～100 s |
| Temperature Measurement Range | 20 – 200 ℃ |
| Sample Dimensions | 145×145 mm |
| Calorimeter Diameter | Ø 40 |
| Power Supply | Single-phase AC 220 V, 50/60 Hz, 1.5 kW |
| Standards | EN 367, ISO 9151 |
Accessories
| Standards accessories | 1 pc | Clamp |
| 1 pc | Power cable |
| Optional accessory | Optional | GT-C48 Pneumatic sample cutter |
| Optional | Cutting Die |
