Application

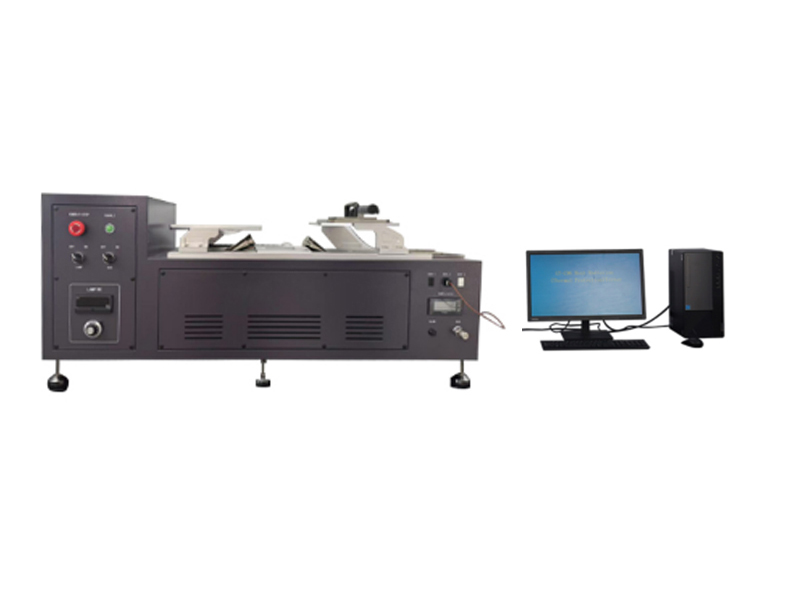

This tester is designed to evaluate the thermal protective and insulation performance of exposed outer surfaces made from flame-retardant fabrics when subjected to radiant and convective heat sources. Typical test specimens include flame-retardant protective clothing, firefighting suits, fire boots, gloves, and helmet outer shells.
The testing system supports the calculation of TPP (Thermal Protective Performance) values, TPE (Thermal Protective Evaluation) tests, and FFF (Fabric Flammability Factor) algorithms.
Principle
Under a specified heat flux, the time to second-degree burn is determined from the intersection point between the response curve (calorimetric sensor temperature rise curve) and the Stoll curve (human tissue tolerance curve).A higher product of heat flux and second-degree burn time indicates superior thermal protective performance of the tested fabric.
Standards
GB/T 38302-2019, ISO 17492-2019, ASTMF 2703, ASTMF 2700, NFPA 1971, XF 10, XF 634, GB 8965.1, NFPA 2112
| Model | GT-RC02B |
| Heat Flux Measurement Range | 0–167 kW/m² |
| Heat Flux Measurement Accuracy | ±2 kW/m² |
| Specimen Irradiated Size | ≥200mm*200mm, for testing flame-retardant protective clothing, fire-fighting suits and protective gloves |
| Convection Heat Source | 2 Merkel lamps (Heat flux: up to 60 kW/m²; Radiant heat flux: up to 40 kW/m²) |
| Rotor Propane Gas Flowmeter | Provides precise, stable propane flow for the burner |
| Radiant Heat Source | 9 x 500W infrared quartz lamps (proportional power control, radiant heat flux up to 0–30 kW/m²) |
| ASTM F2703 Copper Calorimeter | Accuracy ±3% F.S.; Weight 1000±10 g |
| Copper Calorimeter Plate Material | Imported Oxygen-Free superconducting copper |
| Data Acquisition System Sampling Rate | ≥ 40 samples/second |
| Operating Environment | 15–35℃ |
| Fume Hood | Recommended internal dimensions ≥150×75×90 cm (including door height) |
| Gas Source | Propane (Purity ≥95%, equipped with pressure reducing valve; cylinder and outlet pressure controlled) |
| Compressed Air | Customer-supplied |
| Cooling Water Source | Tap water (inlet & outlet) or optional chiller |
| Power Supply | Single phase AC 220 V, 50 Hz |
| Dimensions (LxWxH) | 130×65×53 cm |
| Weight | Approx. 60 kg |
| Standard accessories | 1 pc | Computer |
| 1 pc | DAQ standard test software | |
| 1 pc | ASTM F2703 dedicated copper calorimeter (for testing) | |
| 1 pc | ASTM F2703 dedicated copper calorimeter (for calibration) | |
| 1 pc | Power cable | |
| Optional accessory | Optional | Chiller unit |
