Chair Assembly Testing Machine GT-LB08-2

  • Chair Assembly Testing Machine GT-LB08-2
  • Chair Assembly Testing Machine GT-LB08-2
  • Chair Assembly Testing Machine GT-LB08-2

Chair assembly testing machine is in strict accordance with EN 1728 standard and it combines multiple functions together:

Seat static load and back static load test
Seat and back durability test
Seat front edge static load test
Seat front edge durability test
Seat impact test
Back rests vertical load test
Back rests horizontal forward static load test
Back impact test
Leg rest static load test
Leg forward or sideways static load test
Arm rest sideways static load test
Arm rest downwards static load test
Arm rest durability test
Arm rest impact test
Arm rests vertical upwards static load test
Headrest static load test
Foot rest static load test or durability test
Auxiliary writing surfaces static load test and durability test

1. GT-LBO8-2 chair assembly testing machine is one of the universal testing machines which owns only a single working station, so you could only test one property at a time.

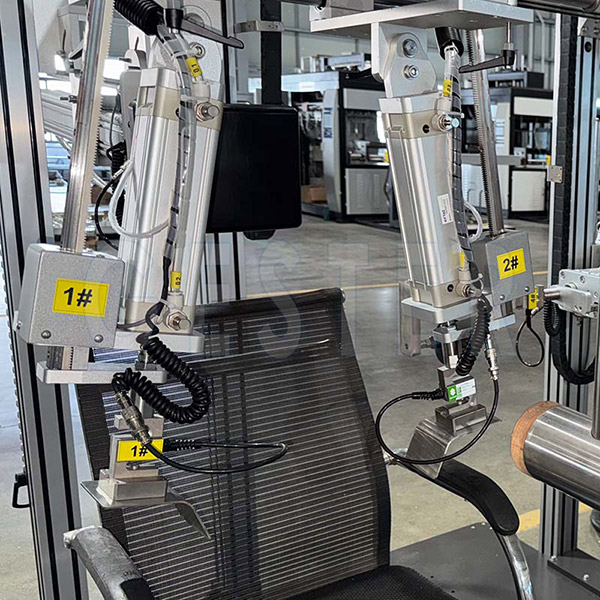

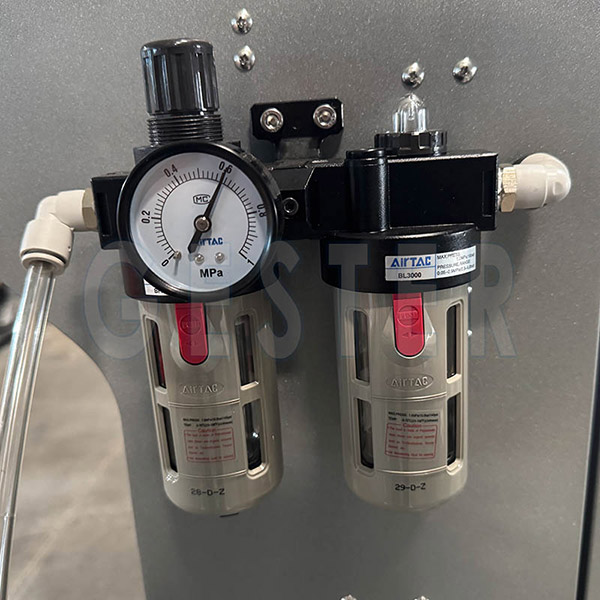

2. Imported air cylinder and servo valve are used together as controlling unit, so the measurement towards load is more accurate and more silent.
3. Beam’s lifting is electronically controlled, allowing wider testing space.
4. PLC (programmable logic controller) is introduced for touch screen, so the operation is easier.

Smaller seat loading pad Diameter: 200mm
Back loading pad 200 mm x 250 mm
Local loading pad Diameter: 100mm
Seat impactor Diameter: 200mm Weight: 25 kg
pendulum Hammer: 6.5 kg Arm: 2kg
Dimensions (WxDxH) 180 x 150 x 205cm
Weight(Kg) 600Kg
Standards EN 1728-2012 Section 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, 6.11, 6.12, 6.13, 6.14, 6.15, 6.16, 6.17, 6.18, 6.20, 6.21, 6.22, 6.24, 6.25, 6.26, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.12
EN581-2-2015 (corresponding with EN1728-2012),
EN 16139-2013 (corresponding with EN1728-2012)
EN1335-3 -2009 Section 7.2, 7.3.1, 7.3.2, 7.3.4,
EN 1729-2-2012 Section 5.3
ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.11, 7.12
GB/T 10357.3 -2013 Section 4.3, 4.4, 4.5,4.6, 4.7, 4.8,4.9, 4.10,4.11, 4.12, 4.13 , 4.14
BS5459-2-2000 Section A5.1, A5.2, A5.3, A5.5, A7.2, 7.3, A7.4, A7.7, A7.9

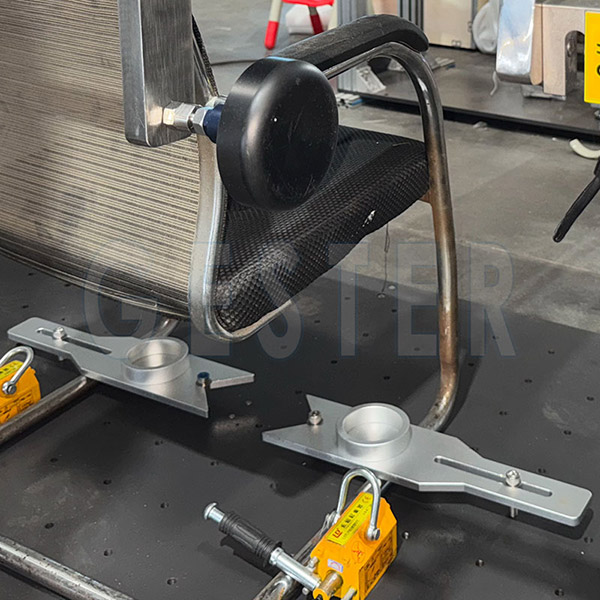

Standard Accessories GT-LB01-1A Loading point template 1 pc, GT-LB01-2A Seat loading pad 1pc GT-LB01-3 Smaller seat loading pad 2pcs, GT-LB01-4 Back loading pad 1pc, GT-LB01-5 Local loading pad 2pcs, GT-LB01-6 Seat impactor device 1pc, GT-LB01-7 Impact hammer 1pc, Stationary fixture 1pc Stops 2pcs
