Universal Testing Machines with Custom Testing Solutions

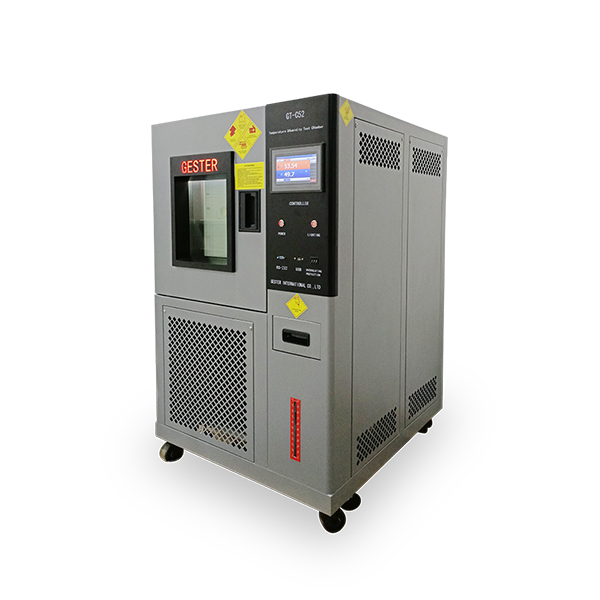

GT-C52 Programmable Temperature & Humidity
Programmable Temperature & Humidity Test Chamber For conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature, humidity and time can be programmed.
Specifications| Capacity | 80L | 150L | 225L | 408L | 612L | 1000L |
| Inside dimensions WxHxD(cm) |
40x50x40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x95x85 | 100X100X100 |
| Outside dimensions WxHxD(cm) |
95x136x94 | 100X146X104 | 100x161X117 | 110x171x137 | 130x181x137 | 152 x 210 x 127 |
| Temperature range (optional, can be custom-made) | -20～150℃, | -40～150℃, | -60～150℃ |
| Humidity range | 20%～98%, can be set. | ||
 | |||
| Rate of temperature increasing | Room temperature～150℃ | About 45 minutes(non-linear no-load, about 3.5℃/minute | |
| Room temperature～-20℃ | About 45 minutes(non-linear no-load, about 1.2℃/minute) | ||
| Machine precision | Control accuracy (test precision) | Temperature | +/-0.5℃ |
| Humidity | +/-1%RH | ||
| Distribution accuracy (uniformity) | Temperature | +/-1.0℃ | |
| Humidity | +/-2%RH | ||
| Environment temperature | 5℃-28℃ | ||
| Environment relative humidity | ≤85%RH | ||
| Power voltage | 220V AC(+/-10%), protect ground wire, ground resistance≤4Ω. | ||
| Frequency | 50+/-0.5Hz | ||
| Power switch | Air-break switch(40A, knife switch or outlet is prohibited to use.) | ||
| Power | 4.5KW | ||
| Humidification water | Resistivity(≥500MΩ) | ||
| Requirement of ambient air quality | Do not contain high concentration dust and flammable gas, without strong electromagnetic radiation source nearby. | ||
| Power supply | AC1￠3W 380V 50/60HZ, voltage change allowed value: ±10% of fixed voltage. | ||
| Max loading capacity | 8KVA | ||
| Max operating current | 30A | ||
