Application

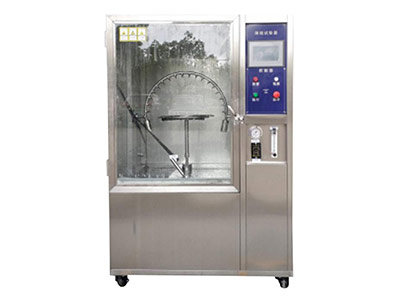

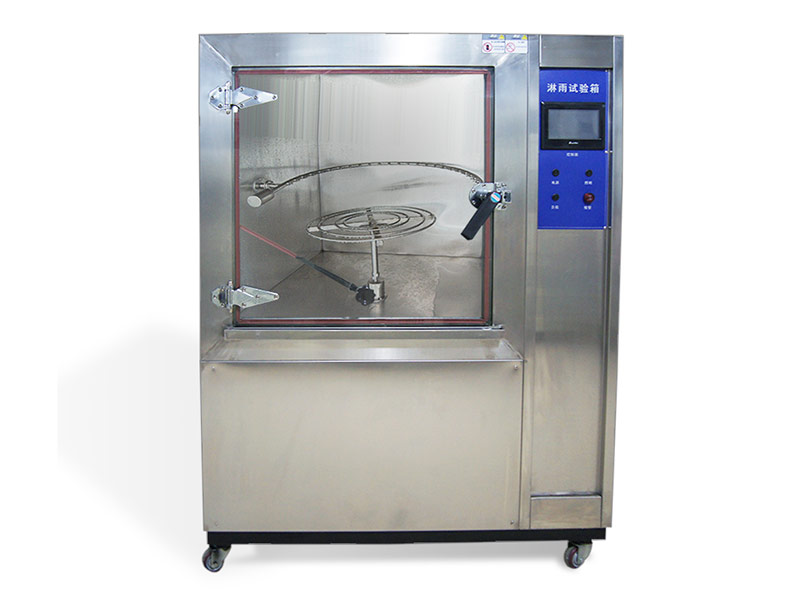

This machine simulates water intrusion under various environmental conditions. It is used to evaluate the performance of electronic products, automotive components, and similar items when exposed to dripping water, wind-driven rain, or spray.
Standards
GB 4208, GB 10485, GB 4942, GB/T 2423.38, GB/T 2424.23
JIS D0203
| Model | |
| Controller | PLC touch screen |
| Testing time | 1–999,999 min (adjustable) |
| Inner dimension (D×W×H) | 1000 × 1000 × 1000 mm |
| Inner chamber material | SUS 304 stainless steel |
| Test table speed | 1–7 rpm (adjustable) |
| Turntable diameter | 600 mm |

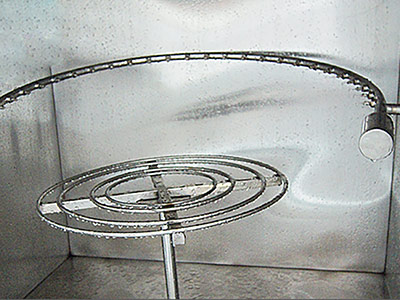

| Swing pipe radius | 400 mm |
| Max. loading weight | 20 kg |
| Spray hole spacing | 50 mm |
| Swing angle of spray pipe | 120° / 320° (adjustable) |
| Nozzle angle | 120° (IPX3), 180° (IPX4) |
| Swing speed of spray pipe | 30°/s; IPX3: 15 times/min; IPX4: 5 times/min |
| Spray hole diameter | Ø0.4 mm |
| Flow rate per spray hole | 0.07 L/min ± 5% |
| Spray pressure | 80–150 kPa |
| Distance between sample and spray device | 200 mm |
| Water supply / consumption | Purified or distilled water, approx. 8 L/day |
| Spray system | IPX3: 16 nozzles; IPX4: 25 nozzles |
| Power supply | 1-phase 220V, 50 Hz, approx. 6 kW |
| Machine dimensions (D×W×H) | 1400 × 1060 × 1710 mm |
