Universal Testing Machines with Custom Testing Solutions
This product has been discontinued and removed from our shelves.
Application

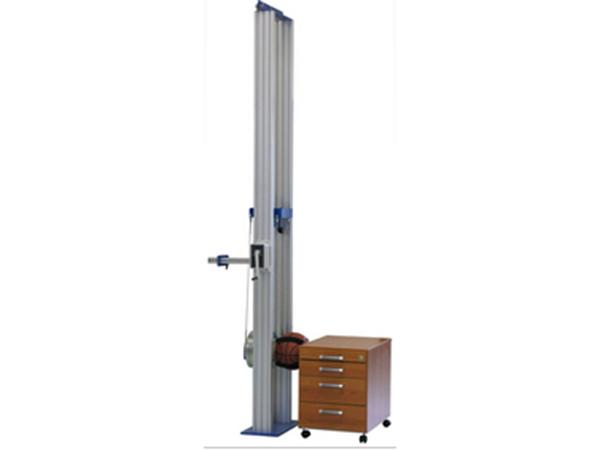

This impact testing machine is used for testing the horizontal impact resistance of furniture.
Principle
The tester swings a basketball striker to certain height to impact the specimen, to see whether it tips over, so as to know the performances and find the defects to improve the products.
Feature:
1. The tester floor can be easily installed in the mechanical performance tester floor, can also be fixed on the ground with expansion screws.
2. The column frame is made of 80x80mm high quality industrial aluminum, beautiful and generous.
3. Standard basketball shock head, shock head weight can be accumulated to change the weight.
4. Impact test height can be adjusted in the range of 200 ~ 1600mm, a wide range of product adaptability.
| Test height | 200~1600mm |
| Weight of striker | Max. 50kg, can be accumulated |
| Cycloid length | 85±5cm |
| Pressure inside the basketball | 73.5±5KPa |
| Ball seat | Inner diam: 90mm, external diam: 150mm; thickness: 35mm |
| Height adjustment | Manual regulation |
| column | 80x80mm high quality industrial aluminum |
