Universal Testing Machine (10N-3KN Tensile Strength Tester)

This product has been discontinued and removed from our shelves.

The single column universal testing machine is developed to evaluate the physical properties of rubber, plastics, leather, yarn, fiber, textile, cable, wood, packaging material, composite material and more, and it could carry out a number of tests, like tensile, compression, bending, shearing, peeling and tearing tests. That is, the universal testing machine combines the functions of tensile strength tester, compression testing machine, tearing strength tester, and more. What is more, other tests are also applicable if the universal testing machine is equipped with corresponding devices.

Technical Data of Single Column Universal Testing Machine

Model GT-C03
Capacity 2kN
Display Computer
Force resolution 1/1000
Force accuracy ≤±0.5%
Test speed 0.001-500mm/min
Force unit N, kgf, lbf
Stop mode Overload stop, emergency stop, specimen damage automatic stop
Drive system Servo motor, synchronous wheel and precision ball screw
Power consumption 120W
Power Supply 220V, 50-60Hz, 10A
Dimensions 500×450×1300mm
Weight 89kg
Standards BS EN ISO13934 13937 13935
BS 3320 4303
ASTM D 434 558 2256 2261 2731 3936 4533 4964 5034 5035 5735 882
ISO 2062 5082 9073.4 10321 13919
Accessories Operating software
Load cell
Cable for connecting with PC
Grips

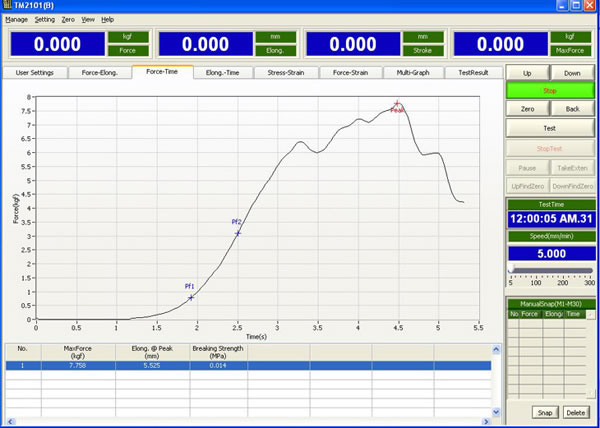

Operating Software

For this single column universal testing machine, its operating software is the same as that of the double column type.

Related Names
Tensile Strength Tester | Material Testing Machine | Single Column Universal Testing System
