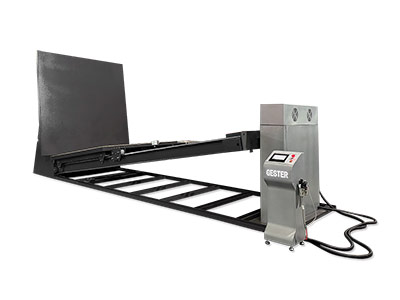

Incline Impact Tester GT-N49
Application
This machine simulates real-world impact conditions to evaluate product resistance to handling damage during shelf stacking, material handling, loading and unloading operations, and transportation. Ideal for packaging technology testing centers, research institutions, universities, packaging material manufacturers, and logistics companies.
Standards
ASTM D880, ISTA
Features
- Flexible moving plate with easy position adjustment and variable speed control
-
Height-adjustable trolley platform facilitates test sample installation; reinforced impact plate ensures structural integrity
-
Horizontal leveling system for precise test piece positioning; pneumatic cylinder-driven angle adjustment for convenient operation
-
Remote control capability maintains safe distance between operator and test zone
-
Simple floor-mounting installation with no complex setup required
Specifications
| Model |
GT-N49 |
| Impact panel size | 1200 * 1200 mm |
| Max. sample load | 250 kg |
| Maximum sliding length | 3000 mm |
| Impact speed range | 1.0～2.6 m/s (impact speed displayable) |
| Trolley table size | 1000 * 1000 mm |
| Dimensions | 6300 * 1200 * 1700 mm (L * W * H) |
| Working environment | Temperature 0～40℃, humidity ≤ 80% |
| Control system | (micro-processor) single chip |
Machine Structure
Component Description

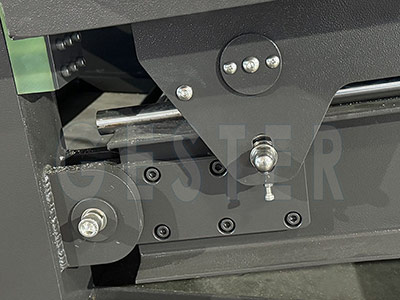

- The impact cart is welded from 45# steel, providing excellent impact resistance.
- The sliding track uses i-beam and high-strength parallel rails to reduce the friction between tracks and wheels during testing.
- The impact plate welded from 45# steel is welded from 45# steel and remains undeformed under an impact energy of 1000 kg.
- A variable-frequency motor and reducer drive the impact cart upward before release, allowing it to slide freely. The impact speed is automatically calculated during the sliding process.

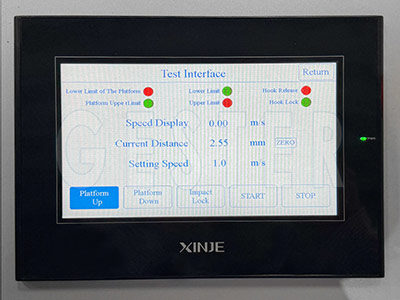

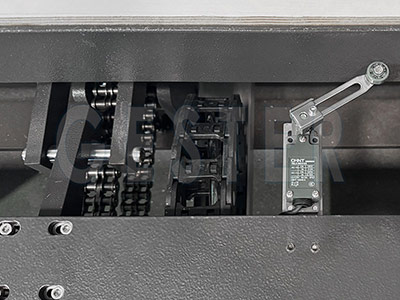

- A displacement encoder is used to measure the impact distance during testing. The desired impact speed can be set through the PLC control program.

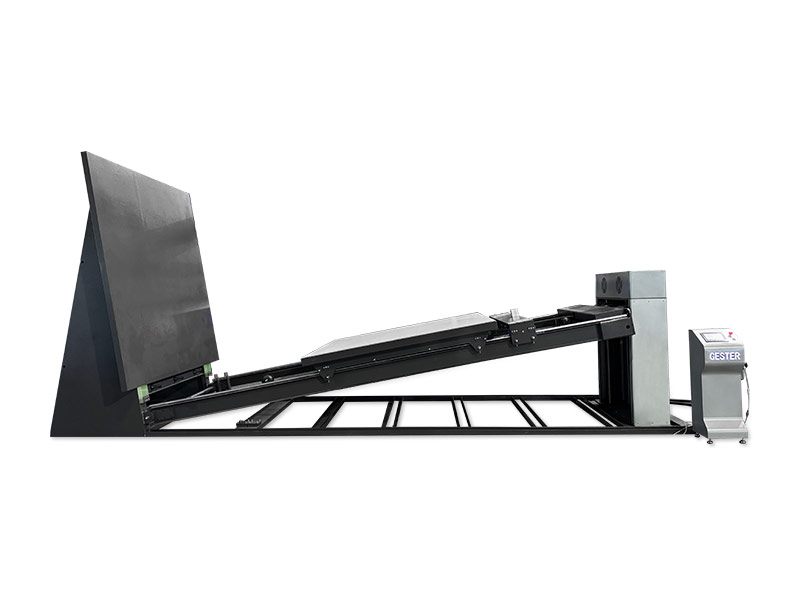

- Lifting cylinder: The track stays horizontal during sample installation. At the start of the test, it automatically lifts to a 10-degree angle.
A dual-cylinder system improves the stability of the impact angle, prevents lateral shaking of the impact table during testing, and increases the lifting force of the track.

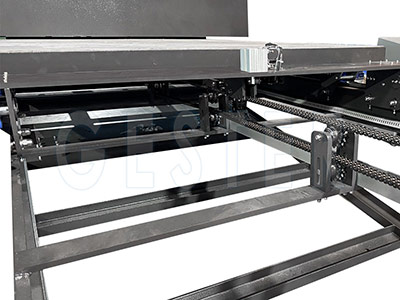

- A lifting chain is used to raise the test plate.
- A hydraulic buffer is installed to reduce the impact force between the impact cart and the impact plate.

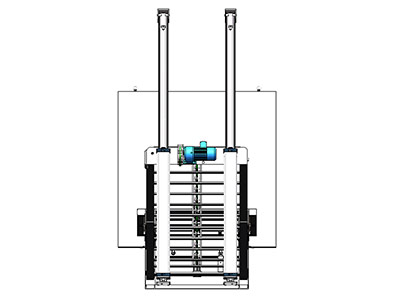

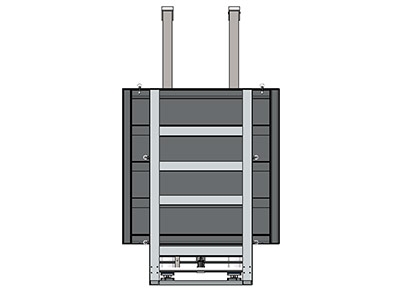

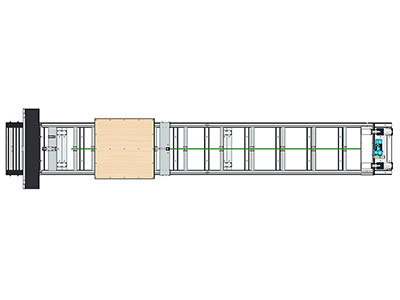

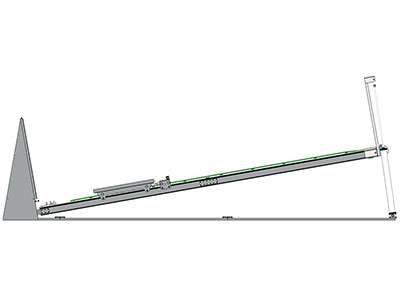

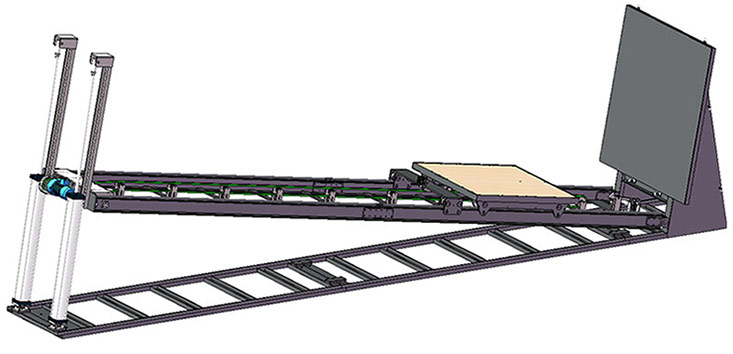

3D Views of the Incline Impact Tester
-
Main View
-
Top View
-
Front View
-
Rear View
