Universal Testing Machines with Custom Testing Solutions

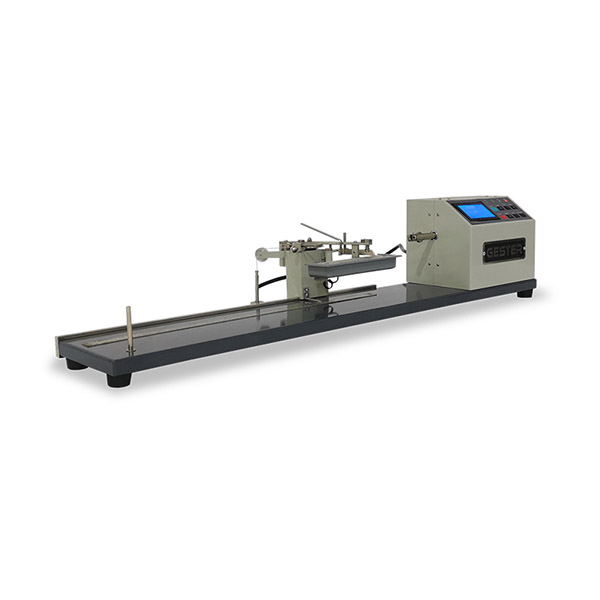

The electronic twist tester is designed to determine yarn twist in single or plyed yarns, quadrant type with auto stop & reverse for conventional or untwist-retwist methods.

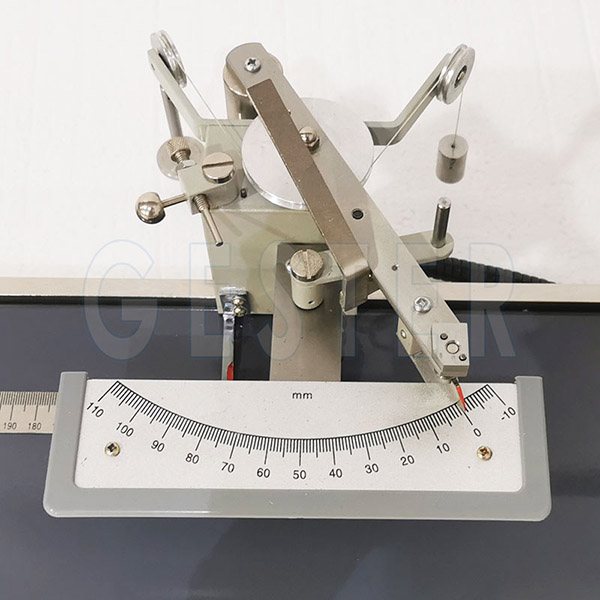

Parts Figure
Technical Data of Electronic Twist Tester
| Model | |
| Length of sample | 0-500mm(adjustable) |
| Range of twist testing | 1-9999.9twist/10cm , 1-9999.9twist/m |
| Max length of untwisting | 60mm (Showed by indicator) |
| Max contracting of twisting | 20mm |
| Grip speed | 800r/min and 1500r/min |
| Presetting tension | 0.5-160.5cN |
| Dimensions | 900 x 250 x 300mm ( L x W x H ) |
| Weight | 20kg |
| Standards | GB/T2543.1.2, 14345, ISO2061, BS2085, ASTM D1422,1423, JISL1095 |
| Optional accessories | Wire printer 50 |
