Universal Testing Machines with Custom Testing Solutions
Application:

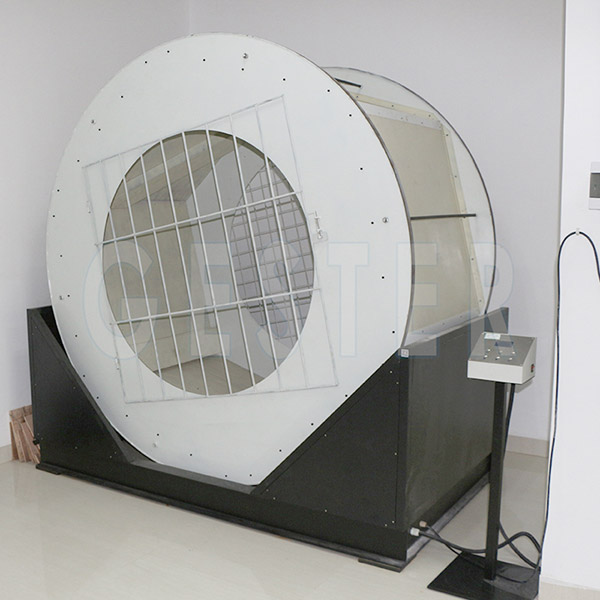

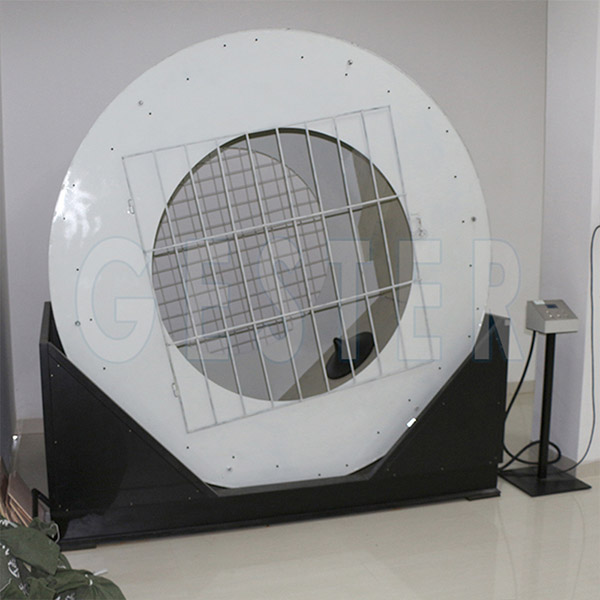

Also called suitcase drum drop test machine, roller tester.It is made by American SAMSONITE standard.
Do rollover impact test for suitcase and other packing-cases while delivery.
The suitcase rollover and do the impact inside the drum.and then check the damaged conditions after the set number of revolutions finished.
| Model | |
| Diameter & depth (drum) | Diameter: Φ72 in Depth: 48 in |
| Times Setting | 0～999999, automatically stop |
| Barrier standard | 3 groups of 60 angle barrier |
| Baffle | 2 groups of 90 angle |

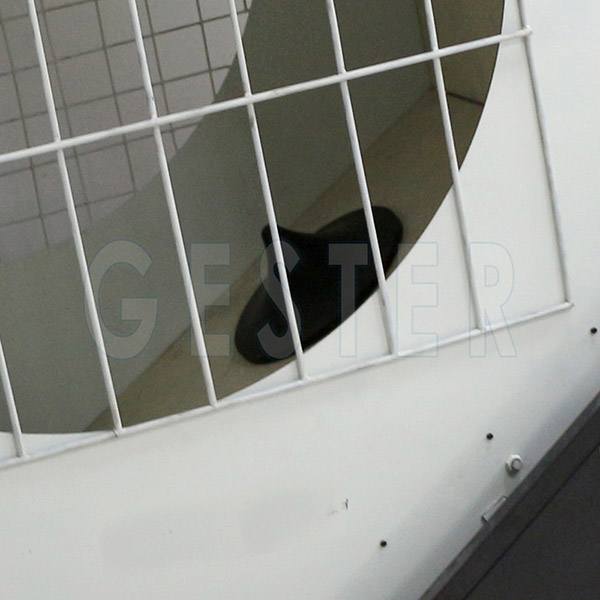

| Impact object | Cone-shaped metal |
| Max. dimension (specimen) | 100*70*40cm |
| Machine dimension | 230*160*260cm |
| Weight | 3860 kg |
| Power | 4.1∮, 220V/50HZ |
