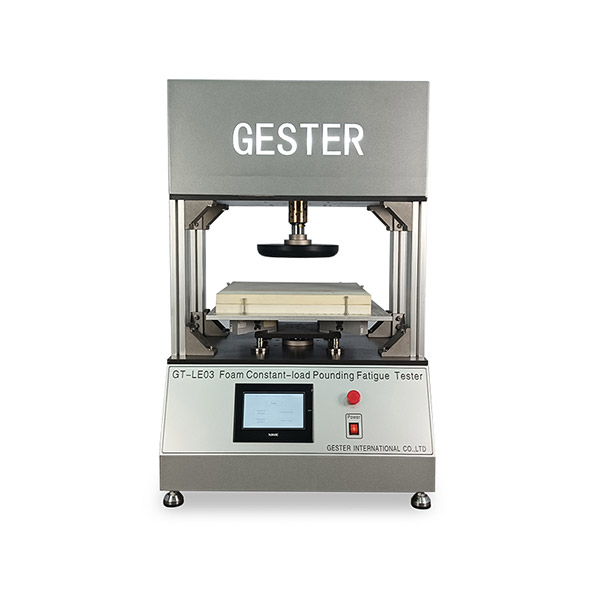

Foam Constant Load Pounding Fatigue Testing Machine GT-LE03

Chair Seat Pad and Back Testing Machine
Chair Seat Pad and Back Testing Machine

Application
The foam constant load pounding fatigue testing machine is used to test the reduction of thickness and the decrease of hardness for porous elastic materials used in interior decoration.
Theory

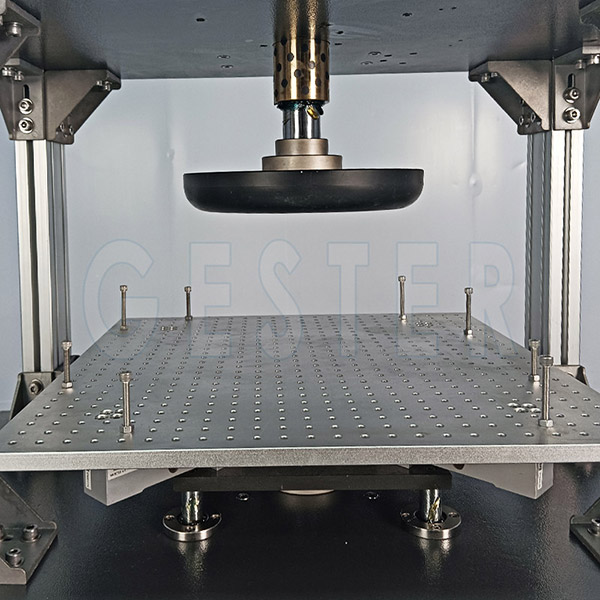

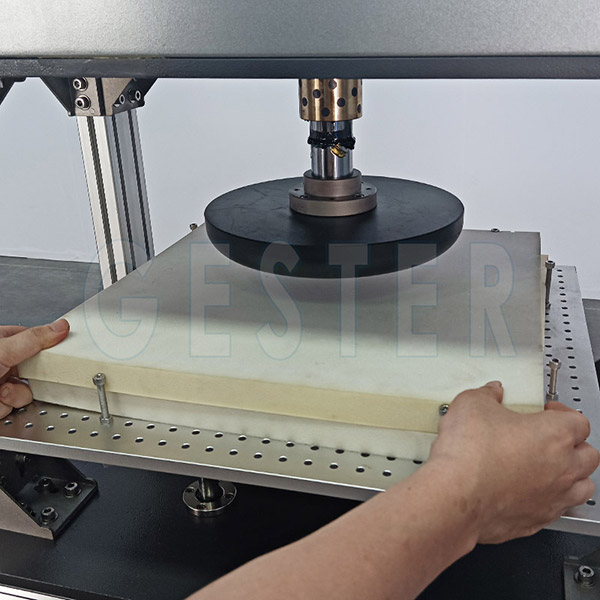

Put a square specimen on the test platform, and repeatedly impact the specimen with a platen smaller than the specimen. The max. load should be reached during each impact period. Then evaluate the sample performance after testing for certain times.
Standards
GB/T 18941, GB/T 12825, ISO 3385, ASTM D3574-TEST I3

Specification
Test speed 70±5 r/min or 10±1 r/min
Test times 0~999999 times, settable.
Upper platen Diameter: Φ250mm Fillet of lower edge: R25mm
Stroke 80mm
Sample load 750±20N
Dimension (specimen) (380±20)x(380±20)x(50±2)mm
Counting 0~999 999 times
Size(W*D*H) 69x50x115cm
Weight About 150kg
Power 1∮, AC 220V 50Hz
