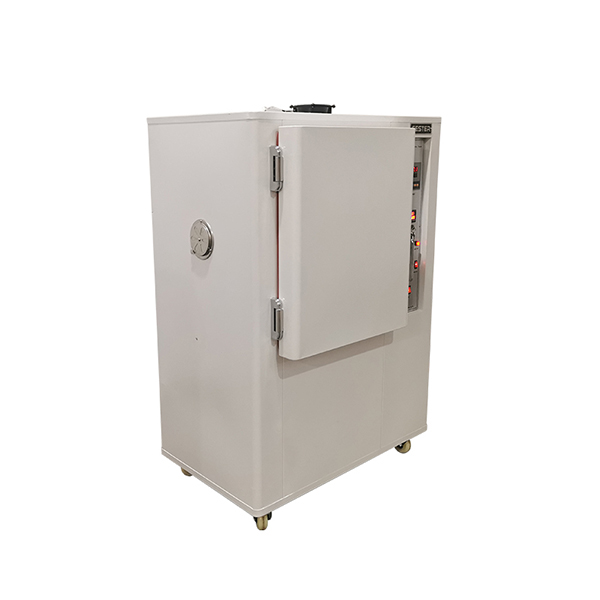

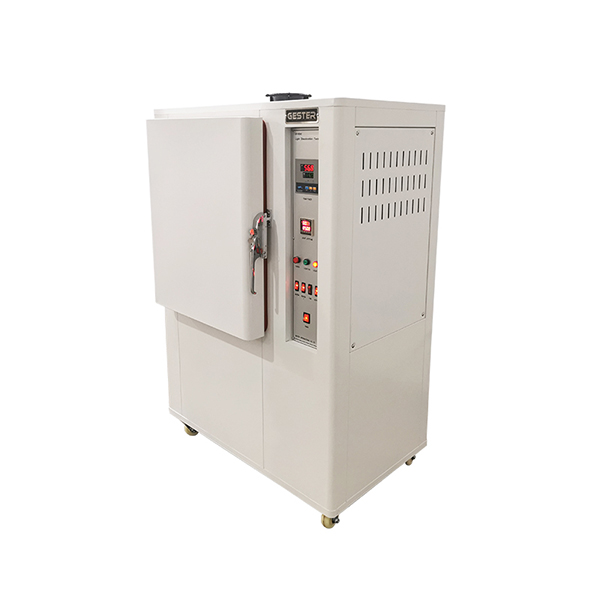

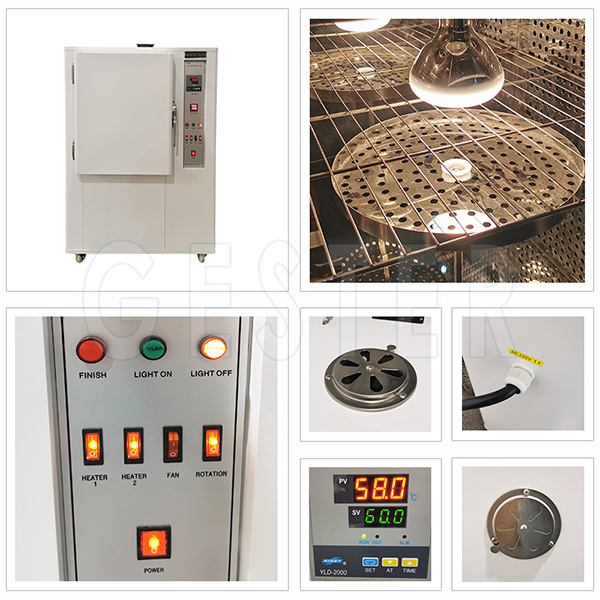

Light Discoloration (UV) Tester

Application
This machine is to test the resistance to discoloration of shoes materials.Such as white and light color upper materials, sole materials, leather, PU, fabric etc. To assess the defect of products the radiation from sun in normal use and high temperature of container during the transport.
This machine also can be used as the aging tester and dying oven, multi-use of one machine.

Key Specification

Model GT-KD02
Light source OSRAM fluorescent UV lamp
Lamp power 300W
Lamp Irradiance ( 25 ( 0.4) W/m2

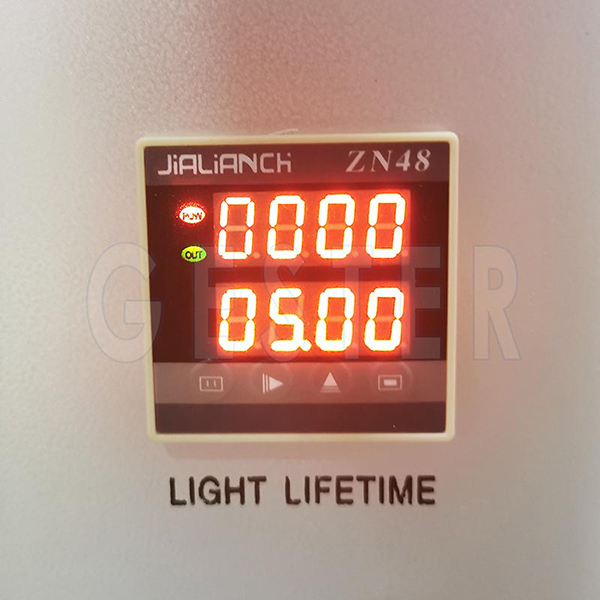

Lamp service life 1000h
Temp. range RT ~ 120℃
Temperature resolution 0.1℃
Heating method hot-air circulation
Timer LED, 0 - 999 hr
Turntable diameter 45 cm
Revolutions 3 rpm
Interior chamber 50 x 50 x 60 cm
Power supply 1∮AC 220V 50/60HZ
Dimensions(W x D x H) 88 x 70 x 156 cm
Weight 140 kg
Standards ASTM-D1148 HG/T 3689
