Application

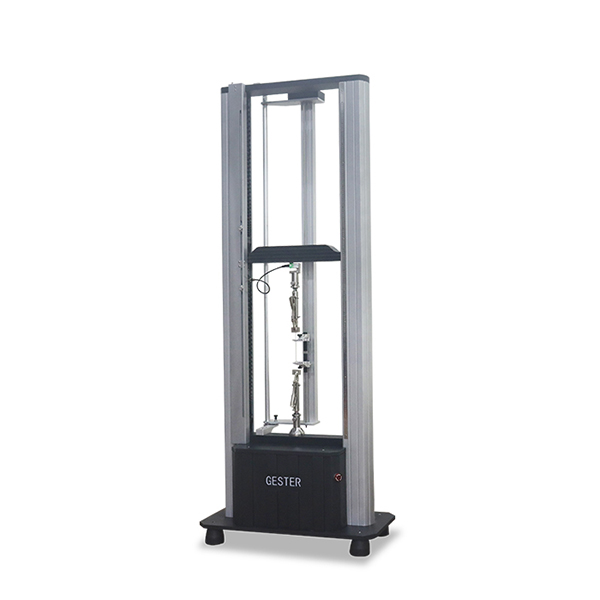

This tester is designed for conducting tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for shoes ,rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.
Feature
1. The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.
2. Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.
3. The speed control range: 0.001-500mm or 0.001-1000mm/min (option)
4. The intermediate plate adjustment is both fast coarse and slow fine-tuning.
5. It will return to original site and save automatically after testing.
6. Data transmission mode: RS232 transmission.
7. This instrument can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.
8. Testing space: test width is 400 mm (standard)
9. All plate walking space: 1200 mm (excluding fixture, according to the customer requirements).
10. The entire displacement: the encoder is 1800 P/R, it can improve 4 times accuracy
11. Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.
12. Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, and automatic breakpoint stop function.
Key Specification
Model | |
|
Max. Capacity | 10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN,10KN,20KN | |
Display | Computer display mode | |
Force Resolution | 1/100,000 | |
Force Accuracy | ≤+/-0.5% | |
Stroke Resolution | 0.001 mm | |
Extensometer Resolution | 0.001 mm | |
Test Speed | 0.001-500mm/min | 0.001-1000mm/min |
Walking space | 1200mm (it can be custom-tailor according to their requirements) | |
Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa | |
Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function | |
Machine Drive | Servo motor drive, synchronous wheel and precision ball screw drive | |
Power Supply | AC 220V 50/60HZ 10A | |
Dimensions | 75x70x170cm(WxDxH) | |
Weight | 170kg |
Standards
SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162, TM401, TM 411,TM 410, ASTMD 751/2209 /412/624 FIA 1206, BS5131- 3.7, 5.11, 5.13 , BS 5153-2.6 ISO22650, ISO 19958,ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO 20867, ISO19957, ISO20874, ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698,ISO20875, ISO22777, ISO22776, ISO22654, ISO20863, ISO20876, ISO17695, ISO17697, ISO34-1 ,ISO36, ISO37, ISO 17708, ISO 17696,ISO17706, ISO 22650 AS/NZS 2210.2-5.2.4 DIN 53331, GB/T 3903.8 , GB/T 3903.9 , GB/T3903.14 ,GB/T3903.20,GB/T3903.21, GB/T3903.22, GB/T 3903.23 , GB/T 3903.24, GB/T 3903.25, GB/T 3903.26, GB/T 3903.29 ,GB/T3903.32,GB/T 3903.39,GB/T 3903.40, GB/T 3903.43 GB/T 4689.20 , GB/T20991-5.2.4 ,GB 21148-5.3.1.2, GB/T 17928, GB/T529, GB/T528, GB/T532, GB/T1143, GB/T21396 QB/T 11413 ,QB/T 2711 ,QB/T2675, QB/T2883, QB/T4118,QB/T4198 HG/T 2726, HG/T 2877, HG/T4805 |
