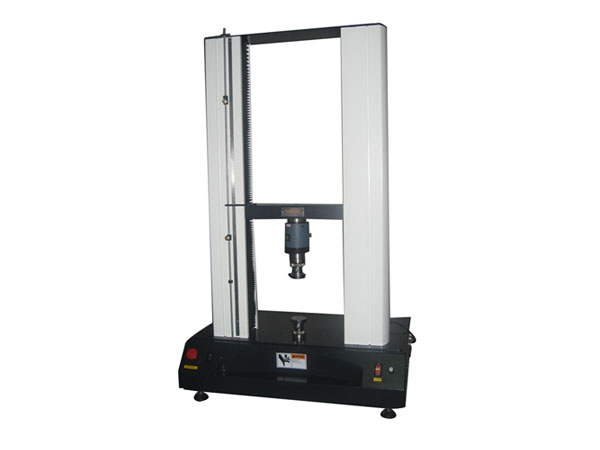

Universal Testing Machine (Dual Column) GT-C01

GT-C01 universal testing machine is a kind of material testing equipment with dual colum. It is used to test the tensile, compressive, shear, bending, bonding, peeling and tearing strength of different materials, such as rubber, plastic, leather, metal, nylon, fabric and paper etc. This universal tester is a basic equipment to control quality, receiving inspection, physical test, mechanics research and material development.

Key Specification of Universal Testing Machine
Model GT-C01
Max. Capacity 2KN, 5KN, 10KN,20KN,30KN,50KN,100KN,200KN (Option)
Display Computer display mode
Force Accuracy ≤+/-0.5%
Stroke Resolution 0.01 mm
Test Speed 0.01 - 5 mm /min, can set by computer, with up & down fast adjustment button of grips
Force Unit Switch Kgf, N, Ibf, g, ton, Mpa
Stop Mode Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Drive Servo motor drive, synchronous wheel and precision ball screw drive
Power 400W
Dimensions 72x 6 2x1 75 cm(WxDxH)
Weight 1 7 0kg
Power Supply 220V 50/60HZ 10A
Standards BS EN ISO 13934-1, 13934-2, 13937-2, 13937-3, 13937-4, 13935-1, 13935-2, BS 3320, 4303 .
ASTM D 434, 558, 2256, 2261, 2731, 3936, 4533, 4964, 5034, 5035, 5735 .
ISO 2062, 5082, 9073.4, 10321, 13919 .
Standard Accessories English operation software Cable connect with PC Grips
Option Accessories HP Desk Top C omputer
