Universal Testing Machine(50N-5KN Tensile Strength Tester)

The double column universal testing machine is designed to conduct compression, tensile, bending, shearing, tearing, peeling and other tests for a wide range of materials, like rubber, plastic, leather, metal, nylon, fabric, paper, cable, fiber, wood, tape, packaging material, waterproof material, etc. If equipped with some special devices, the material testing equipment can be applied to carry out torque test, cupping test and many other tests.

In general, this dual column universal tester is a piece of fundamental test equipment for quality control, acceptance test, mechanical research and material development.

1. Adopt AC PANASONIC AC servo drive system, Taiwan SESAME gear reducer, synchronous pulley, TBI precision ball screw components make instrument beam move stable with low noise & high precision of extension.
2. Adopt aluminum alloy column shell, deal with high temperature & solidify injection on the machine surface will never fade.
3. This machine adopts many kinds of protection measures:
    1) Beam’s limit cams protecting device
    2) Clamp touch avoid protecting device
    3) Set up protection on displacement & load software
    4) Sensor overload protection
    5) Sample load software protection
    6) Overcurrent & overvoltage protection
4. Real time supervision to main parts, more safe & reliable while using machine.
5. This machine adopts open system: user can edit test program, data analysis formula, test report according to test material’s category, character and test methods requires.
6. This machine provides many kinds of humanity automatic mode.
7. While using electronic clamp, trial initiation can set as clamp grip auto start or pre-tension auto grip start. It also set as clamp auto open after finished test.
8. This machine also can set clamping distance and auto location.
9. The distance of scraping can be set freely.

Key specification

Model GT-C01-1 A GT-C01-1 B
Max. Capacity 10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN
Display Computer Display Mode
Force Resolution 1/100,000
Force Accuracy ≤+/-0.2%
Stroke Resolution 0.001 mm
Test Speed 0.01-1000mm/min, Can Set by Computer
Stroke Space 1100mm 900mm
Gantry Structure Width 400mm
Stop Mode Overload Stop, Emergency Stop Button, Specimen Damage Automatic Stop, Upper & Lower Limit Set Automatic Stop, Automatic Return Function
Machine Drive Servo Motor Drive, Synchronous Wheel and Precision Ball Screw Drive
Dimensions(W´D´H) 820x630x1800mm 820x630x1600mm
Power Supply AC 220V 50/60HZ 10A
Weight 140kg 120kg
Standards ISO13934-1, 13934-2, 13935-1, 13935-2, 13936-1, 13936-2, 13936-3, 13937-2, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18 ASTM D 434, D751, D885 , D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735 . BS 2543, 2576, 3320, 3424, 4303 , 4304, M&S P11, P12, P13, P14 JIS L1096

This is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

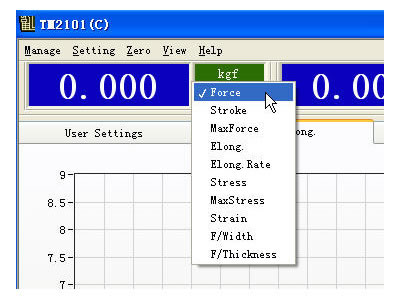

Operating Software

The dual column materials testing machine is provided with a piece of specialized software to facilitate operation. This software not only suits for our universal testing machine, but is also applicable for hydraulic testing machine and compression tester.

1. With the help of this software, the universal testing machine can be used to conduct a broad range of tests, while data collection, data processing, data storage, test result printing are also available.
2. This software could calculate many key parameters, like max. deformation, max. force, yield strength, yield point, elastic modulus, average peeling force, etc. In addition, it also fits for graphics processing and supports MS-Access database.

Load Cell Options
1. 10N load cell
2. 25N load cell
3. 50N load cell
4. 100N load cell
5. 250N load cell
6. 500N load cell
7. 1kN load cell
8. 2.5kN load cell
9. 5kN load cell
10. 10kN load cell
11. 20kN load cell
