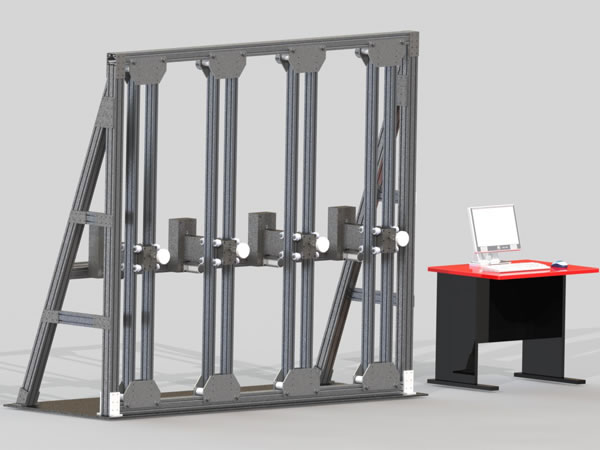

The horizontal thrust testing machine is a piece of swing testing equipment intended to evaluate the stability of swings, slides, climbing frames and other activity toys by exerting a horizontal thrust at the top of toys to see if tip-over occurs, and the horizontal thrust tester is manufactured according to EN71-8 and ISO 8124-4 6.1.2/6.1.4.
Applications of the Horizontal Thrust Testing Machine
This horizontal force tester fits for activity toys with a free height of fall of more than 600mm, as well as swings and other activity toys with crossbeams more than 1200mm over the ground.
Technical Data of Horizontal Thrust Testing Machine
| Model | |
| Force | 0-2500N |
| Accuracy | ±0.5% |
| Resolution | 5N |
| Unit | N, kN, kgf, lbf |
| Direction of force | Horizontal |
| No. of loading device | 4 in total |
| Loading mode | Fixed force |
| Loading point distance | ≤600mm |
| Loading point height | 30-180cm |
| Loading stroke | 28cm |
| Loading time | 0-9999s |
| Test speed | 0-500mm/min |
| Force control | Closed loop |
| Control system | PC + specialized testing software |
| Transmission system | Servo motor + ball screw |
| Dimensions | 280×120×240cm |
| Weight | Approx. 650kg |
Related Names
Swing Tester
