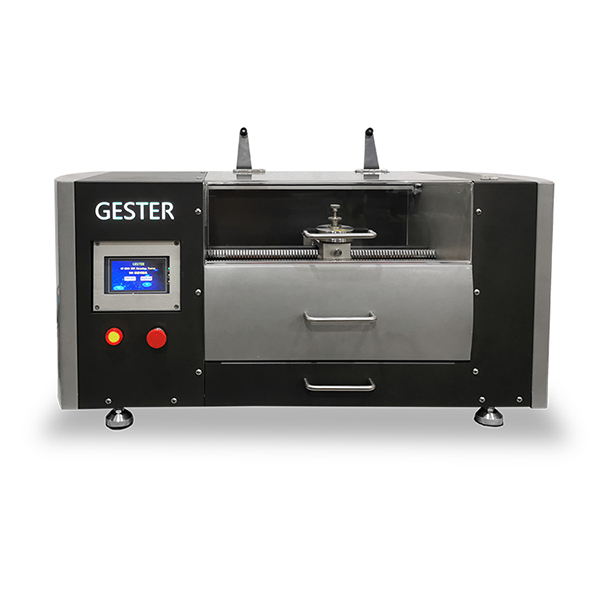

DIN Abrasion Tester

Application
It is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.

Feature
1.Body paint baking processed, easy for maintenance.
2.Equip with digital counter, automatically stop after test finished.

Key Specification

Model GT-KB03
Diameter of wear wheel 150mm
Specimen dimension ø16.2 mm x thickness 6-10 mm
Specimen moving speed 4.2 mm/r
Weights Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one)
Wear wheel speed 40±1rpm
Inclination angle 3°, Test piece support shaft of test piece becomes vertical angle with roller.
Grit size of sandpaper #60
Roller length 460mm
Wear stroke 40m
Power supply Customizable
Dimensions (L x W x H) 700 x 300 x 300 mm
Weight 55kg

Standards

DIN-53516, JIS-K6369, JIS K6264-2,GB/T 20991 section 8.3,GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, SATRA TM174, BS903-A9 Method A, ASTM D5963, ISO20871, QB/T2884, SATRA TM 193, EN 12770

Accessories

Standard accessories 1pc 2.5N weights
1pc 5N weights
1pc P60# standard abrasive paper
1pc Standard cutting die
1pc Metal blob(Grinding head)
1pc Power line
Option accessories Optional GT-G203H Electronic balance (210g,accuracy 1mg)
Optional Standard rubber
