Rubber Abrasion Resistance Tester(AKRON Abrasion Tester)

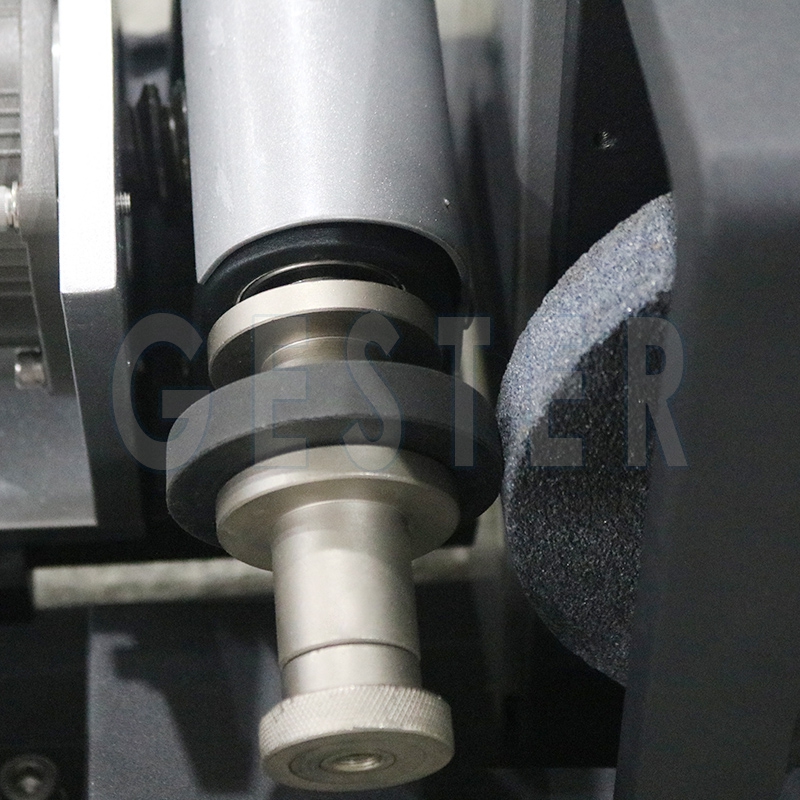

The AKRON abrasion tester is a widely used rubber abrasion resistance tester that uses weight to detect the abrasion resistance of the tire and other rubber-similar product.

Technical Parameters of the Rubber Abrasion Resistance Tester

Model GT-KB04
Test piece rotating speed 75±5rpm
Grinding wheel size Φ150mm×38mm(Outer diameter×width), 40 grit
Rotating speed of grinding wheel 33rpm
Test angle 0-45 degree, adjustable
Counter LCD, 0- 99,999,999
Weights 0.45kg (2lb) or 2.73kg (6lb)
Test piece size Φ2.5"×0.5" (Inner diameter×thickness) or 220×127×1.5mm
Test piece hardness 60-70
Dimension 60×45×45cm(L×W×H)
Machine weight 60kg
Power supply AC 220V, 150W
Standard CNS 734 K6264, BS-903-A9, GB/T1689
